Sensor-Transmission Range (D6646A)

Harness-Family: Body

Color: BLACK

Gender: FEMALE

Part Number: 7283-8700-30

Part Description: Not Available

Connector No: D6646A

Option: Standard

Repair Kit Part Number: 68018958AA

Cavity Count:

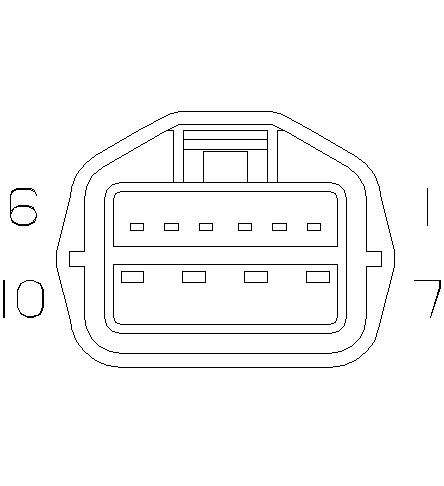

Fig 1: Sensor-Transmission Range Connector End View

Courtesy of CHRYSLER

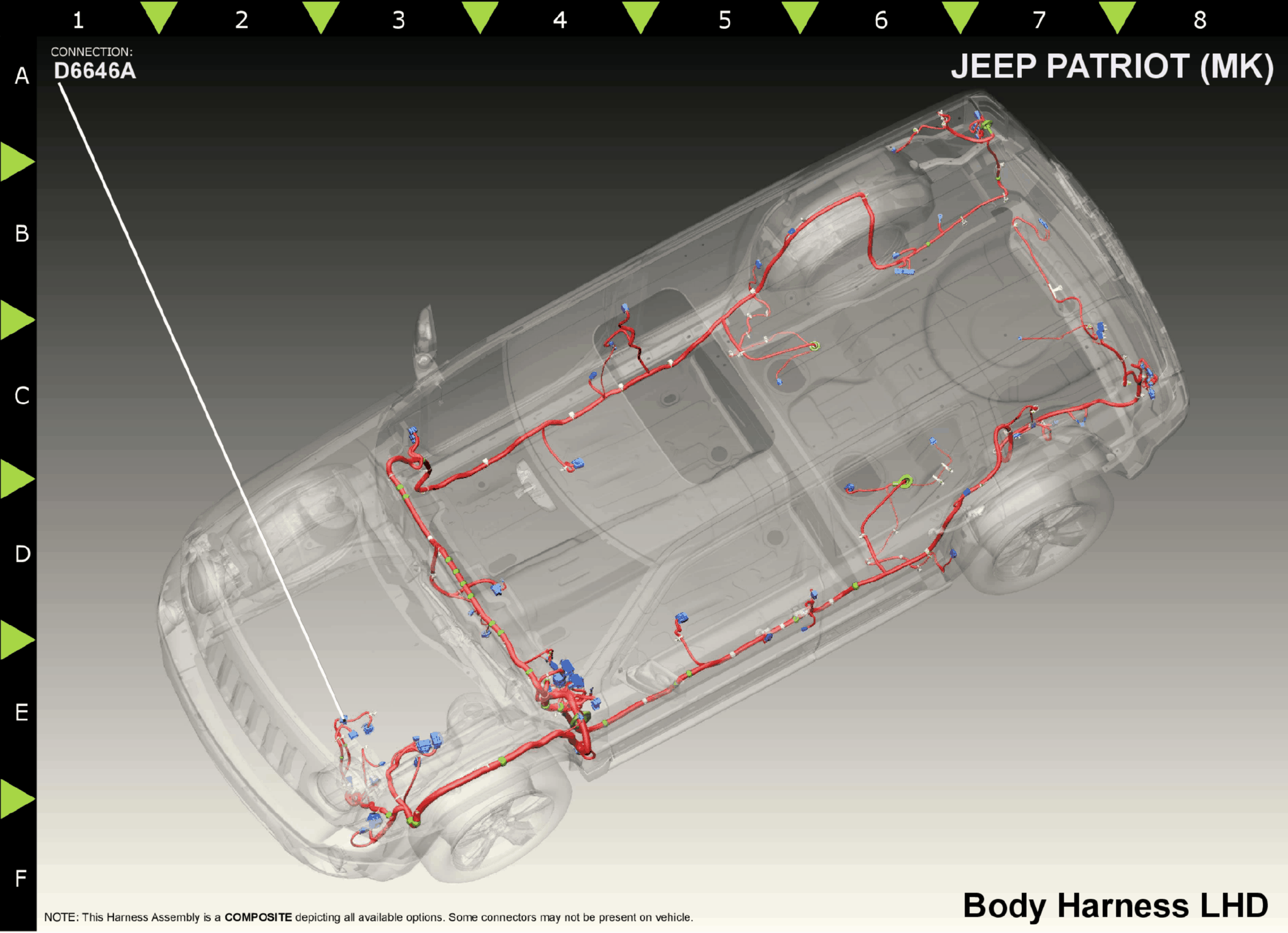

Fig 2: Sensor-Transmission Range Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

DG/GY

0.50

TRS T1 SIGNAL

N/A

T41

YL/BK

0.50

TRS T41 SIGNAL

N/A

T16

YL/OR

0.80

TRANSMISSION CONTROL OUTPUT

N/A

DG/DB

0.50

TRS T3 SIGNAL

N/A

Z921

0.50

GROUND

N/A

DG/OR

0.50

TRS T4 SIGNAL

N/A

T42

DG/PK

0.50

TRS T42 SIGNAL

N/A

T120

DB/OR

0.50

MTX-CLUTCH INTERLOCK / ATX-PARK NEUTRAL

N/A

⁽¹⁾	Pins not listed are not used for this connector
