Latch, Door: Removal: Removal

Fig 1: Rear Door Bolster

Courtesy of CHRYSLER GROUP, LLC

Separate the bolster (3) and allow it to hang by the tethers. Refer to PANEL, REAR DOOR TRIM, BOLSTER, REMOVAL .

Fig 2: Latch Fasteners
Courtesy of CHRYSLER GROUP, LLC
Remove the latch screws (3).

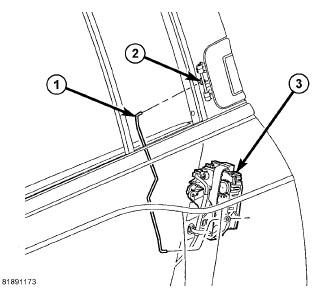

Fig 3: Exterior Handle Rod
Courtesy of CHRYSLER GROUP, LLC
Disconnect the exterior handle rod (1).

Fig 4: Latch Linkages
Courtesy of CHRYSLER GROUP, LLC
Disconnect the latch linkages (1).
Remove the bracket screw (3).
Remove the latch (2) and disconnect the electrical connector.
