Plate, Carrier: Removal: Removal

Fig 1: Rear Window & Regulator

Courtesy of CHRYSLER GROUP, LLC

NOTE:

It may be necessary to have an assistant help with these steps.

Raise the window (1) into the position shown in illustration to gain access to the window tabs.
Remove the door trim bolster panel. Refer to PANEL, REAR DOOR TRIM, BOLSTER, REMOVAL .
With a punch or equivalent, press the regulator tabs holding the window (1) in the regulator (2).
Disconnect the window (1) from the regulator (2).
Tape the window (1) into the full up position.

Fig 2: Lower Trim Fastener
Courtesy of CHRYSLER GROUP, LLC
Loosen the lower screw (2).

Fig 3: Door Panel & Speaker
Courtesy of CHRYSLER GROUP, LLC
Remove the speaker (2). Refer to SPEAKER, REMOVAL .

Fig 4: Exterior Handle Rod
Courtesy of CHRYSLER GROUP, LLC
Disconnect the exterior handle rod (1) from the latch (3).

Fig 5: Latch Fasteners
Courtesy of CHRYSLER GROUP, LLC
Remove the latch screws (3).

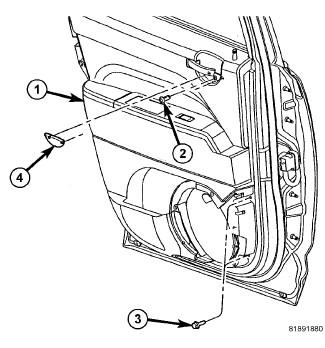

Fig 6: Door Trim Fasteners
Courtesy of CHRYSLER GROUP, LLC
Remove the trim screws (3) from the speaker opening.
Remove the trim cap (4) and the screw (2) at the inside handle.

Fig 7: Harness Fasteners
Courtesy of CHRYSLER GROUP, LLC
Disconnect the main harness connector (1).
Remove the screws (3) from the door frame.

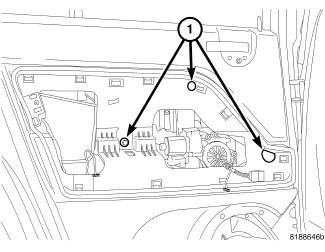

Fig 8: Upper Regulator Fastener
Courtesy of CHRYSLER GROUP, LLC
Remove the three upper fasteners (1).

Fig 9: Module, Four Trim Hooks & Screw
Courtesy of CHRYSLER GROUP, LLC
Lift the module (1) up off of the four trim hooks (2) and lower regulator screw (4).
Pull the front of the trim module (1) out from the door and forward to remove the latch.

Fig 10: Harness Fasteners
Courtesy of CHRYSLER GROUP, LLC
Separate the harness (2) from the door.
