Shield, Splash, Front Wheelhouse: Removal: Removal

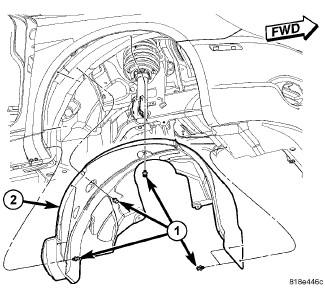

Fig 1: Splash Shield Front Fasteners

Courtesy of CHRYSLER GROUP, LLC

1. Remove the front fasteners (1).
   Fig 2: Splash Shield

   Courtesy of CHRYSLER GROUP, LLC
2. Remove the remaining fasteners (3 - 5) and remove the splash shield (6).
