Integrated Control Unit (ICU): Disassembly: Disassembly

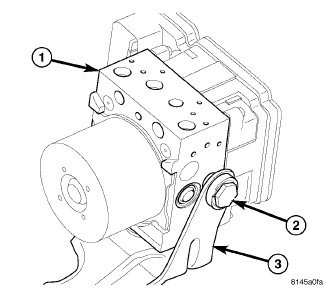

Fig 1: Identifying ICU With Mounting Bolt & Bracket

Courtesy of CHRYSLER GROUP, LLC

1 - ICU

2 - MOUNTING BOLT

3 - MOUNTING BRACKET

1. If the mounting bracket (3) needs to be removed from the ICU, remove the single mounting bolt (2), then slide the ICU's mounting pins out of the grommets in the bracket and remove the bracket.

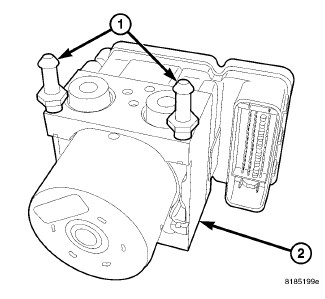

   Fig 2: ICU Mounting Pins

   Courtesy of CHRYSLER GROUP, LLC
2. Remove the mounting pins from the ICU.

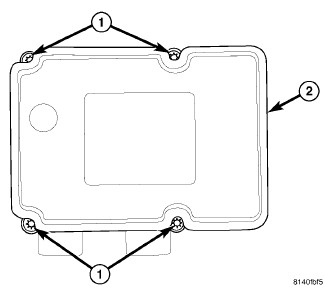

   Fig 3: ABM Mounting Screws - With Traction Control

   Courtesy of CHRYSLER GROUP, LLC

   1 - MOUNTING SCREWS

   2 - ABM

3. Remove the four screws (1) attaching the ABM (2) to the HCU.

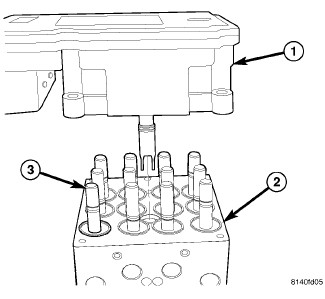

   Fig 4: ABM Assembly To HCU

   Courtesy of CHRYSLER GROUP, LLC

   1 - ABM

   2 - HCU

   3 - SOLENOID VALVE STEM

4. Separate the ABM (1) from the HCU (2).
