Verify DTC Is Active

VERIFY DTC IS ACTIVE
1. Turn the ignition on.
2. With the scan tool, read and record ABS DTCs.
3. With the scan tool, read and record Environmental Data to help identify the conditions in which the DTC was set.
4. With the scan tool, erase ABS DTCs.
5. Cycle the ignition switch.
6. With the scan tool, read ABS DTCs.
  Does this DTC reset?

  Yes
  - Go To 2
  No
  - Perform the ABS-INTERMITTENT CONDITION TEST. Refer to ABS-INTERMITTENT CONDITION .
INSPECT RELATED WIRING HARNESS, TERMINALS, AND CONNECTORS
1. Turn the ignition off.
2. Check all related wiring for pinched, chafed, pierced, and partially broken wires.
3. Check all related connectors for broken, bent, pushed out, and corroded terminals.
  Were any problems found?

  Yes
  - Repair as necessary.
  - Perform ABS VERIFICATION TEST. Refer to ABS VERIFICATION TEST .
  No
  - Go To 3
CHECK (G4) DYNAMICS SENSOR SUPPLY CIRCUIT SHORT FOR A SHORT TO VOLTAGE

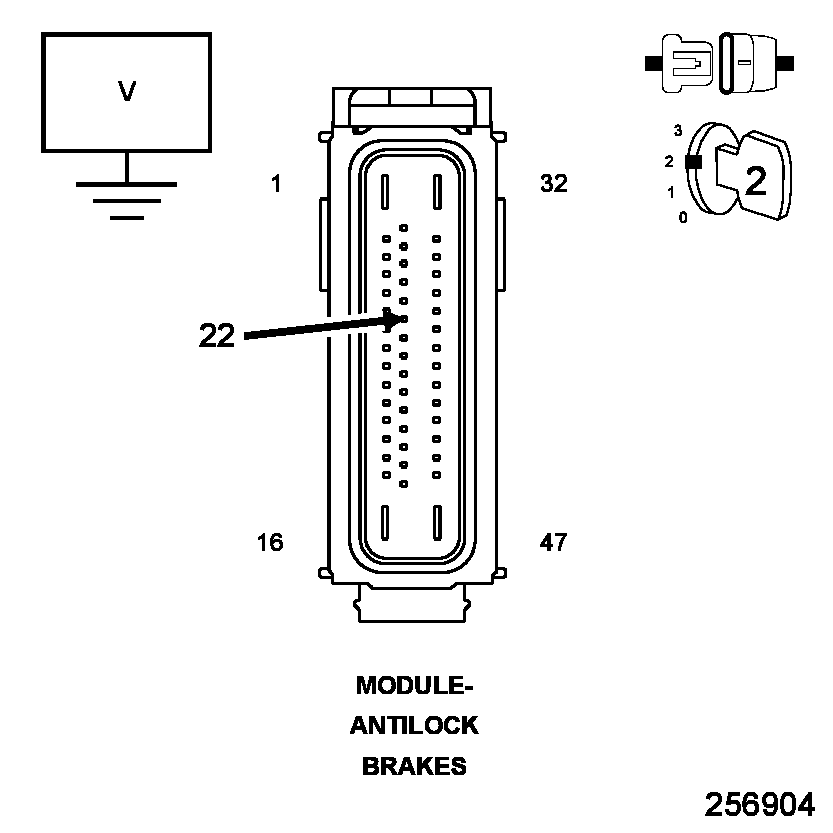

Fig 1: Measuring Voltage Of Dynamics Sensor Supply Circuit
Courtesy of CHRYSLER GROUP, LLC
1. Disconnect the Anti-Lock Brake Module harness connector.
2. Turn the ignition on.
3. Measure the voltage of the (G4) Dynamics Sensor Supply Circuit.
  Is the voltage above 0.2 volts?

  Yes
  - Repair the (G4) Dynamics Sensor Supply Circuit for a short to voltage.
  - Perform ABS VERIFICATION TEST. Refer to ABS VERIFICATION TEST .
  No
  - Replace the Anti-Lock Brake Module in accordance with the Service Information.
  - Perform ABS VERIFICATION TEST. Refer to ABS VERIFICATION TEST .
