Glass Preparation - Installing A New Quarter Glass

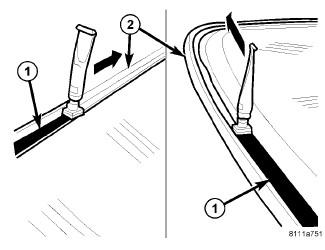

Fig 1: Windshield Primer

Courtesy of CHRYSLER GROUP, LLC

1 - PRIMER

2 - WINDSHIELD SEAL

NOTE:

Typical primer installation shown in illustration.

1. Clean and dry area of glass (2) to be re-glued with a suitable glass preparation solvent and rag.
2. Apply primer to gluing surface at quarter glass seal.
3. Apply primer (1) around the perimeter of the glass to a width of 15 mm (0.5 in.).
4. Allow primer to air dry for at least 10 minutes.
5. Using a flash light, verify that glass primer is without damage.
