Quarter Glass Opening Preparation

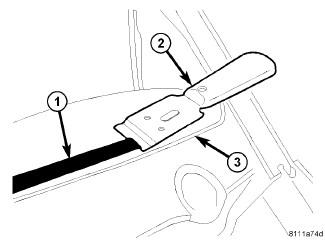

Fig 1: Windshield Opening Preparation

Courtesy of CHRYSLER GROUP, LLC

1 - OLD ADHESIVE

2 - SCRAPER

3 - WINDSHIELD OPENING

NOTE:

Windshield opening shown in illustration, quarter glass opening similar.

Clean and vacuum quarter glass opening.
Level old bead of quarter glass opening adhesive (1) to a thickness of approximately 1 mm (0.04 in.) and remove loose adhesive.

Fig 2: Applying Windshield Primer
Courtesy of CHRYSLER GROUP, LLC

1 - PRIMER

2 - WINDSHIELD OPENING

NOTE:
Windshield opening shown in illustration, quarter glass opening similar.
Clean and dry area of quarter glass opening to be re-glued with a suitable glass preparation solvent and rag.
Re-prime any damaged area. If old adhesive has been exposed for more than 12 hours, entire adhesive area needs to be re-primed.
Allow primer to air dry for at least 10 minutes.
