Sunshade, Sunroof: Installation: Installation
Courtesy of CHRYSLER GROUP, LLC
- Verify the sunshade track is free of obstructions like the trim lace/ring.

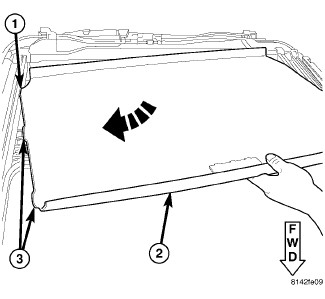

- Start with sunshade (2) at an angle with one foot (1) in the track.
- Rotate the sunshade so the other rear foot is in the track as well as the 2 other feet (3) on the same side as the first foot.
Courtesy of CHRYSLER GROUP, LLC

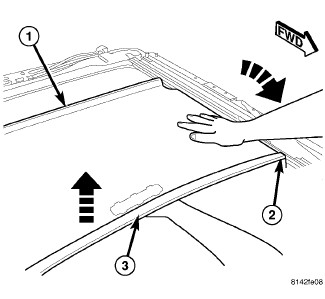

- To insert the remaining two feet (2) apply force to the middle front of sunshade (3) and guide them into the track.
- Check that all the feet are in the right track and verify sunshade operation.
- Install the drain trough. Refer to TUBE, SUNROOF DRAIN, INSTALLATION .
