Amplifier-Radio C1 (D3804A)

Harness-Family: Body

Color: WHITE

Gender: FEMALE

Part Number: 174952-1

Part Description: INSULATOR

Connector No: D3804A

Option: Standard

Repair Kit Part Number: 05183484AA

Cavity Count: 20

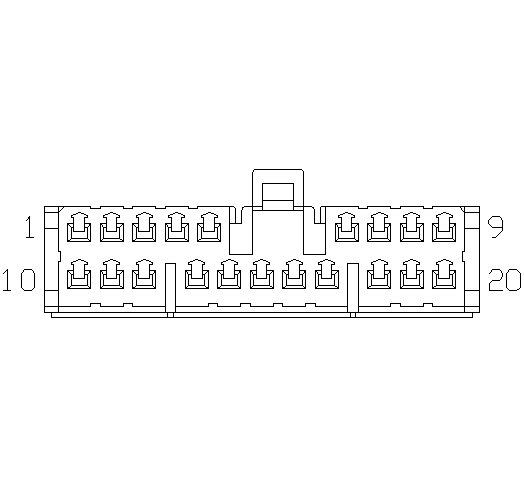

Fig 1: Amplifier-Radio C1 Connector End View

GCWD1024300

Courtesy of CHRYSLER

Fig 2: Amplifier-Radio C1 Component Location

GCWD1212066

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

1

X209

GY/TN

0.80

AMPLIFIED LEFT I/P SPEAKER (+)

N/A

2

X208

GY/DG

0.80

AMPLIFIED RIGHT I/P SPEAKER (+)

N/A

4

A419

RD/DG

0.80

FUSED B(+)

N/A

6

D55

WT/OR

0.35

CAN B (+)

N/A

7

X51

DG/DB

0.80

LEFT REAR SPEAKER (+)

N/A

8

X52

GY/DB

0.80

RIGHT REAR SPEAKER (+)

N/A

9

Z924

BK/LB

0.80

GROUND

N/A

10

X299

GY/BR

0.80

AMPLIFIED LEFT I/P SPEAKER (-)

N/A

11

X298

GY/LG

0.80

AMPLIFIED RIGHT I/P SPEAKER (-)

N/A

13

A420

WT/RD

0.80

FUSED B(+)

N/A

17

D54

WT/PK

0.35

CAN B (-)

N/A

18

X57

DG/BR

0.80

LEFT REAR SPEAKER (-)

N/A

19

X58

GY/OR

0.80

RIGHT REAR SPEAKER (-)

N/A

20

Z924

BK/LB

0.80

GROUND

N/A

⁽¹⁾	Pins not listed are not used for this connector
