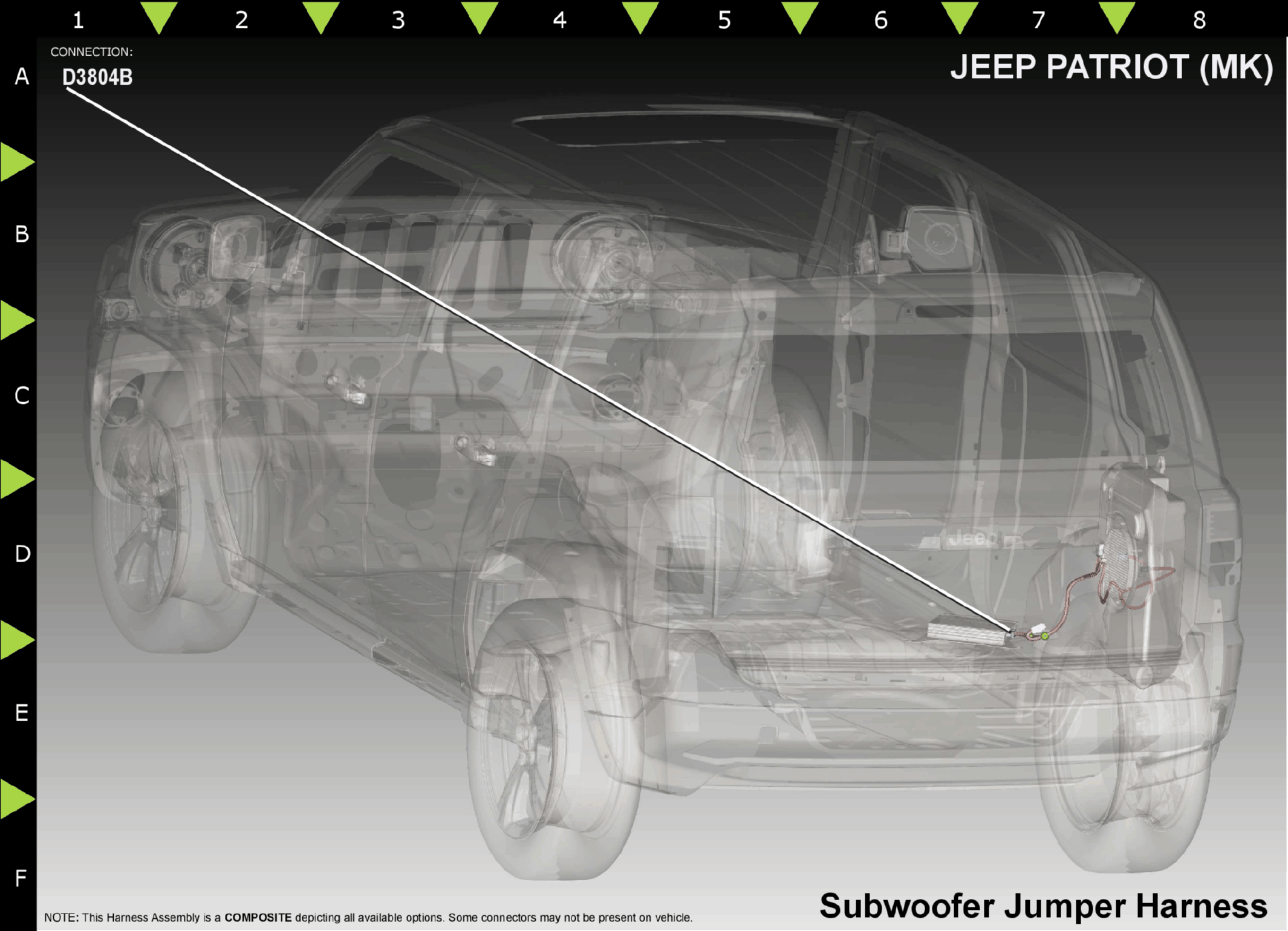

Amplifier-Radio C2 (D3804B)
Harness-Family: Subwoofer_Jumper
Color: WHITE
Gender: FEMALE
Part Number: 173852-1
Part Description: Not Available
Connector No: D3804B
Option: Standard
Repair Kit Part Number: Not Available
Cavity Count: null
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option | ||
|---|---|---|---|---|---|---|---|
| 1 | X153 | DB | 0.80 | LEFT FRONT DOOR SPEAKER (+) | N/A | ||
| 2 | X154 | GY | 0.80 | RIGHT FRONT DOOR SPEAKER (+) | N/A | ||
| 3 | X205 | TN | 0.80 | LEFT REAR SPEAKER (+) | N/A | ||
| 4 | X206 | YL/BK | 0.80 | RIGHT REAR SPEAKER (+) | N/A | ||
| 5 | X214 | LB | 0.80 | REAR TWEETER LT (+) | N/A | ||
| 6 | X212 | PK | 0.80 | REAR TWEETER RT (+) | N/A | ||
| 7 | X155 | DB/BK | 0.80 | LEFT FRONT DOOR SPEAKER (-) | N/A | ||
| 8 | X156 | GY/WT | 0.80 | RIGHT FRONT DOOR SPEAKER (-) | N/A | ||
| 9 | X295 | TN/WT | 0.80 | LEFT REAR SPEAKER (-) | N/A | ||
| 12 | X296 | YL/DG | 0.80 | RIGHT REAR SPEAKER (-) | N/A | ||
| 13 | X284 | LB/BK | 0.80 | REAR TWEETER LT (-) | N/A | ||
| 14 | X282 | PK/BK | 0.80 | REAR TWEETER RT (-) | N/A | ||
|
|||||||
