Antenna-Radio C1 (D5901A)

Harness-Family: Audio_Jumper

Color: CURRY

Gender: MALE

Part Number: 6-1438912-0

Part Description: JACK KIT RG-316 OR RG-174, FAKRA, SMB

Connector No: D5901A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 1

Fig 1: Antenna-Radio C1 Connector End View

Courtesy of CHRYSLER

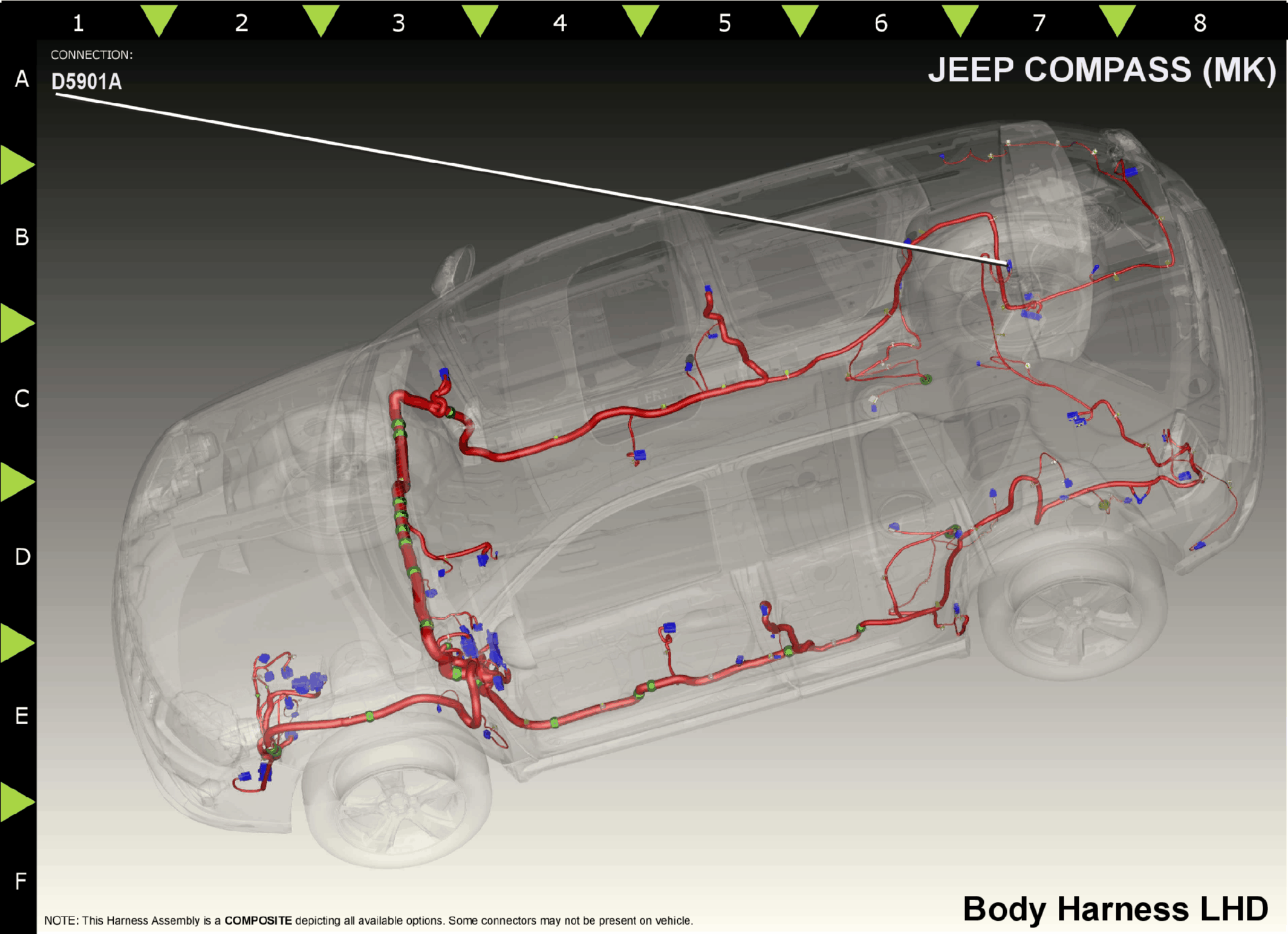

Fig 2: Antenna-Radio C1 Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

WT/OR

ANTENNA SIGNAL

N/A

D931

WT/YL

999

ANTENNA SHIELD

N/A

⁽¹⁾	Pins not listed are not used for this connector
