Pod, Switch: Installation: Installation

WARNING:

To avoid serious or fatal injury on vehicles equipped with airbags, disable the Supplemental Restraint System (SRS) before attempting any steering wheel, steering column, airbag, seat belt tensioner, impact sensor or instrument panel component diagnosis or service. Disconnect and isolate the battery negative (ground) cable, then wait two minutes for the system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the SRS. Failure to take the proper precautions could result in accidental airbag deployment.

NOTE:

There are several different instrument panel switch pods available, depending upon the optional equipment content of the vehicle. Be certain that a replacement switch pod matches the optional equipment of the vehicle into which it is being installed.

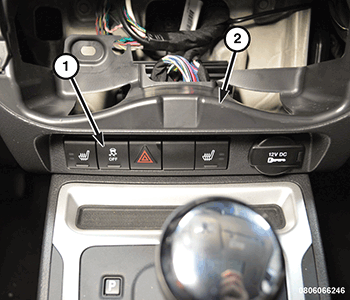

Fig 1: Switch Pod & Instrument Panel Lower Cover

Courtesy of CHRYSLER GROUP, LLC

Position the instrument panel switch pod (1) to the back of the instrument panel lower cover (2).
NOTE:
Install the lower switch pod screws first for easier installation.

Fig 2: Switch Pod Screws
Courtesy of CHRYSLER GROUP, LLC
Install and securely tighten the four screws (1 and 2) for the switch pod to the lower cover.

Fig 3: Radio Mounting Bracket, Instrument Panel Switch Pod & Wire Harnesses
Courtesy of CHRYSLER GROUP, LLC
Connect the wire harness connector (2) to the back of the switch pod (4).
Install the radio. Refer to RADIO, INSTALLATION .
Connect the battery negative cable.
