Panel, Closure, Upper: Removal: Removal

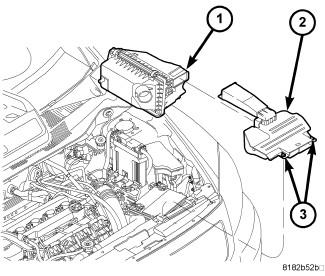

Fig 1: Air Cleaner Box And Snorkel
GC0099091Courtesy of CHRYSLER GROUP, LLC
  1. Rotate the two retaining clips (3) and remove the air cleaner snorkel (2) from air cleaner box (1).

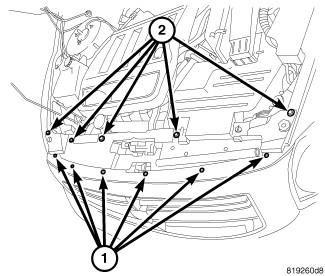

    Fig 2: Closure Panel Fasteners
    GC0085133Courtesy of CHRYSLER GROUP, LLC
  2. Remove fascia fasteners (1).
  3. Remove closure panel fasteners (2).
  4. Remove closure panel from vehicle.
