Panel, Closure, Upper: Installation: Installation

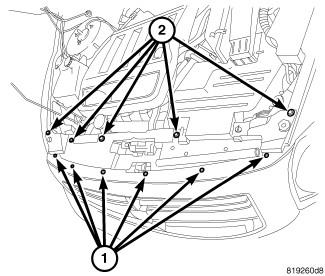

Fig 1: Closure Panel Fasteners

Courtesy of CHRYSLER GROUP, LLC

1. Slide closure panel under fascia aligning holes.
2. Tighten fascia fasteners (1).
3. Insert closure panel fasteners (2) and tighten.

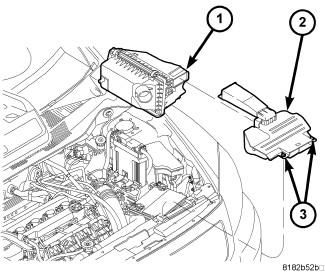

   Fig 2: Air Cleaner Box And Snorkel

   Courtesy of CHRYSLER GROUP, LLC
4. Insert air cleaner snorkel into airbox opening. Rotate the two retaining clips (3) and fasten into closure panel ensuring fit.
