Rack, Luggage: Installation: Installation: Patriot

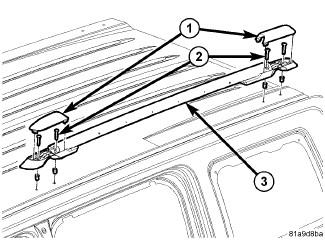

Fig 1: Luggage Rack Rails & End Caps

Courtesy of CHRYSLER GROUP, LLC

1. Install the roof rack rails (3) and install the screws (2).
2. Tighten the screws to 4 N.m (35 in. lbs.).
3. Position the end caps (1) back into place and seat fully.
