Shield, Splash, Front Wheelhouse: Installation: Installation

NOTE:

Left hand side has 2 additional push pins as it has additional material to cover the fuel filler tube.

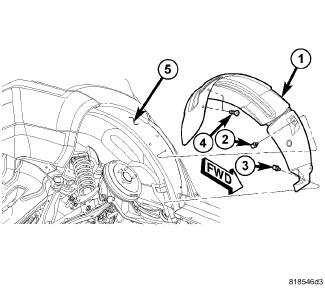

Fig 1: Rear Splash Shield
GC0103309Courtesy of CHRYSLER GROUP, LLC
  1. Place splash shield (1) up to wheel house (5) and align splash shield holes with fender.
  2. Install fasteners (4).
  3. Install push pins (2) and (3).
  4. Install the rear wheels. Refer to INSTALLATION .
