Cover-Upper Instrument Panel

Fig 1: Upper IP Cover & Passenger Airbag Mounting Fasteners

Courtesy of CHRYSLER GROUP, LLC

Carefully place the upper instrument panel cover into position to the IP structure. Ensure the passenger airbag mounting studs are aligned.
Install the screws securing the upper IP cover (2) to the instrument panel (IP).
Install the passenger airbag mounting fasteners. Refer to AIR BAG, PASSENGER, INSTALLATION .
Connect the passenger airbag electrical connectors.

Fig 2: Glove Box Release Hinges
Courtesy of CHRYSLER GROUP, LLC
Install the glove box (2) to the hinges (1) using a twisting motion.

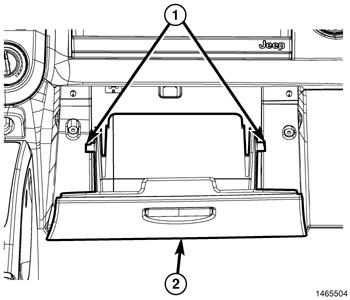

Fig 3: Glove Box & Stop Tabs
Courtesy of CHRYSLER GROUP, LLC
Raise the glove box (2) while squeezing the stop tabs (1) inward.
Install the driver and passenger side end caps.

Fig 4: Identifying Center Bezel
Courtesy of CHRYSLER GROUP, LLC
Place the radio into position and connect the electrical connectors.
Install the radio mounting fasteners.
Place the center bezel (2) into position to the IP (1).
Connect the electrical connectors and the mechanical connections to the HVAC.
Fully seat the center bezel to the instrument panel (1).

Fig 5: Upper Instrument Panel Cover
Courtesy of CHRYSLER GROUP, LLC
Install the defroster grille (1) to the vehicle and seat fully.
Install the driver and passenger A-pillars from the vehicle.
Connect the battery negative cable.
