Panel, Quarter Trim: Removal: Removal

Fig 1: Cargo Floor

Courtesy of CHRYSLER GROUP, LLC

Lift the cargo floor up and disengage from the rear pivots.

Fig 2: Door Scuff Plates
Courtesy of CHRYSLER GROUP, LLC
Remove the door scuff plate (3). Refer to PLATE, SCUFF, DOOR, REMOVAL .

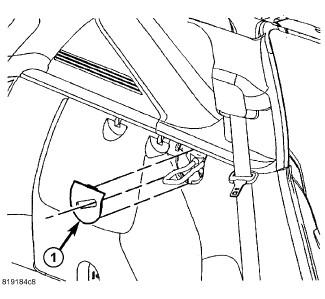

Fig 3: Latch Trim
Courtesy of CHRYSLER GROUP, LLC
Fold the rear seat back into the down position.
Using a trim stick (special tool #C-4755, Trim Stick) or equivalent, remove the latch trim bezel (1).

Fig 4: Liftgate Scuff Plate
Courtesy of CHRYSLER GROUP, LLC
Using a trim stick (special tool #C-4755, Trim Stick) or equivalent, release the retaining clips (2) and remove the liftgate scuff plate (1).

Fig 5: Quarter Trim Panel
Courtesy of CHRYSLER GROUP, LLC
Remove the cargo hook and retainer, if equipped.
Separate the quarter trim panel (2) from the body and remove.
