Body - Interior & Exterior: Sunroof: Sunroof: Removal: Removal

Fig 1: Battery System Components

Courtesy of CHRYSLER GROUP, LLC

1. Move glass panel to fully closed position.
2. Disconnect and isolate negative battery cable (4).
3. Remove control switch. Refer to SWITCH, SUNROOF, REMOVAL .
4. Remove headliner. Refer to HEADLINER, REMOVAL .

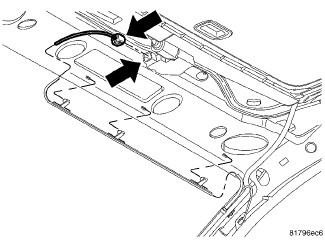

   Fig 2: Electrical Connector

   Courtesy of CHRYSLER GROUP, LLC
5. Disconnect the electrical connector.
   Fig 3: Drain Tubes & Sunroof Housing

   Courtesy of CHRYSLER GROUP, LLC
6. Disconnect drain tubes (2) from sunroof housing (1).

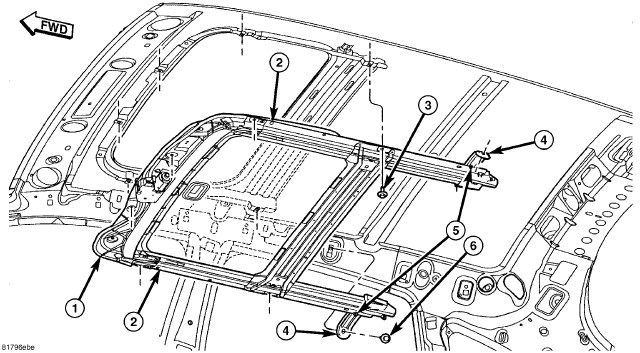

   Fig 4: Sunroof Module Assembly

   Courtesy of CHRYSLER GROUP, LLC
7. Remove two module side bracket (4) bolts (6) and loosen the six remaining fasteners (3).
8. Remove the six (3) fasteners attaching sunroof module assembly (1) to roof panel.
9. Remove the glass panel. Refer to GLASS, SUNROOF, REMOVAL .
10. Remove the sunshade. Refer to SUNSHADE, SUNROOF, REMOVAL .
11. Remove the drive motor. Refer to MOTOR, SUNROOF, REMOVAL .
12. Remove the wire harness.
13. Remove the trough guides. Refer to TUBE, SUNROOF DRAIN, REMOVAL .
