Capacitor-Ignition (D8100A)

Harness-Family: Powertrain

Color: BLACK

Gender: FEMALE

Part Number: 184116-2

Part Description: CONNECTOR -PLUG ASSY 2 P -1 CIR (H KEY)

Connector No: D8100A

Option: Standard

Repair Kit Part Number: 68040449AA

Cavity Count: 2

Fig 1: Capacitor-Ignition Connector End View

Courtesy of CHRYSLER

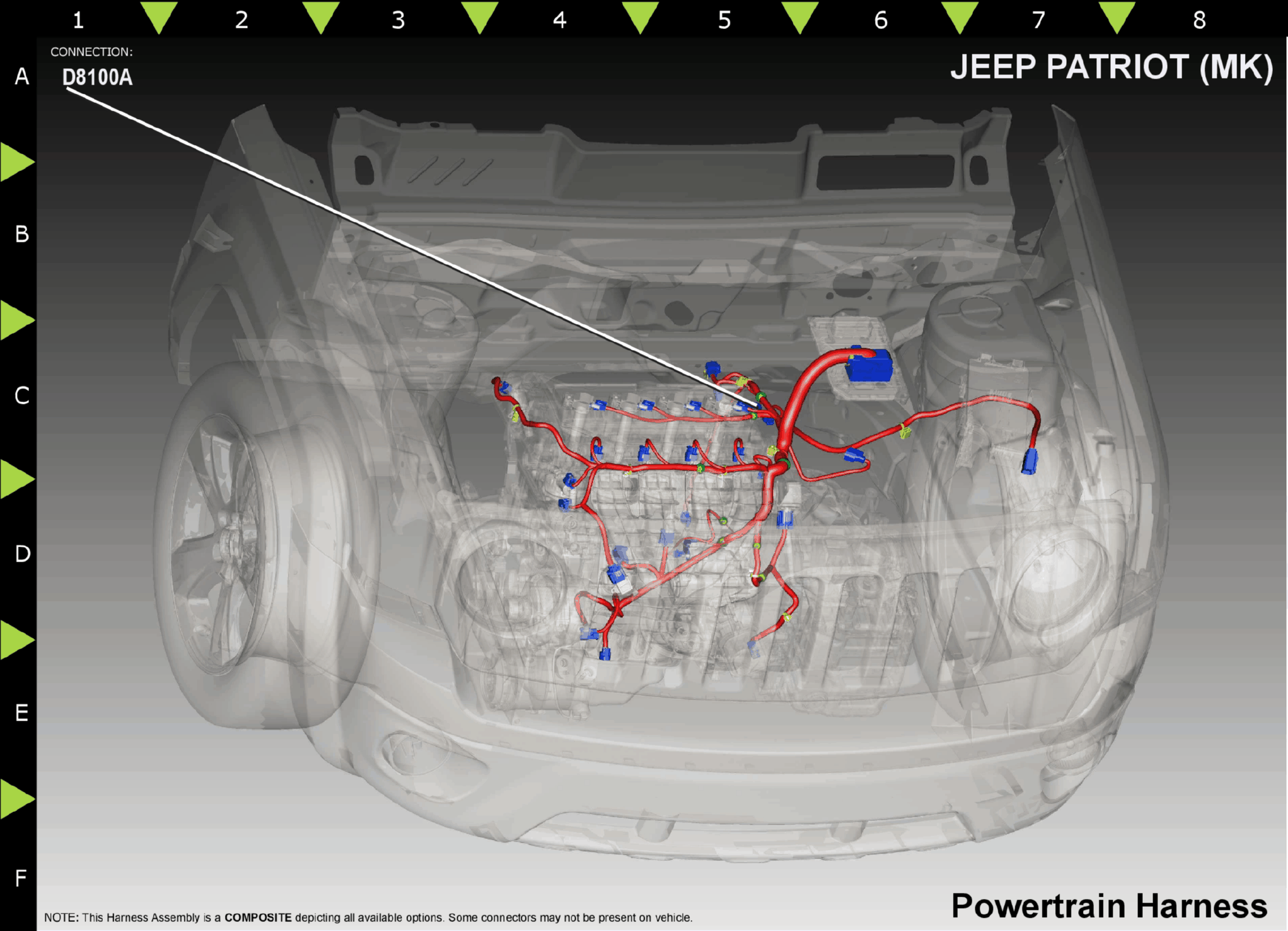

Fig 2: Capacitor-Ignition Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

F344

BR/GY

FUSED ASD RELAY OUTPUT

N/A

⁽¹⁾	Pins not listed are not used for this connector
