CLOCKSPRING C3 (D6654C)

Harness-Family: IP

Color: WHITE

Gender: FEMALE

Part Number: 776063-1

Part Description: INSUL 4 WAY.070 (Female)

Connector No: D6654C

Option: Standard

Repair Kit Part Number: 68057305AA

Cavity Count: 4

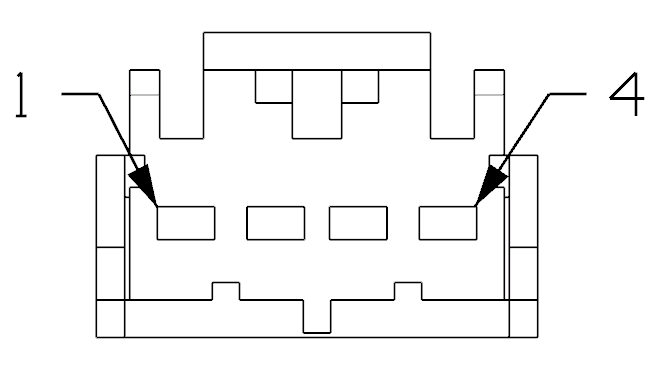

Fig 1: Clockspring C3 Connector End View

GCWD1052542

Courtesy of CHRYSLER

Fig 2: Clockspring C3 Component Location

GCWD1160680

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

1

R63

DB/WT

0.50

DRIVER SQUIB 2 LINE 1

N/A

2

R61

LG/VT

0.50

DRIVER SQUIB 2 LINE 2

N/A

3

R45

LG/OR

0.50

DRIVER SQUIB 1 LINE 1

N/A

4

R43

LB/BR

0.50

DRIVER SQUIB 1 LINE 2

N/A

⁽¹⁾	Pins not listed are not used for this connector
