Diagnostic Test

(P33) DOOR LOCK DRIVER WIRE SHORT TO GROUND

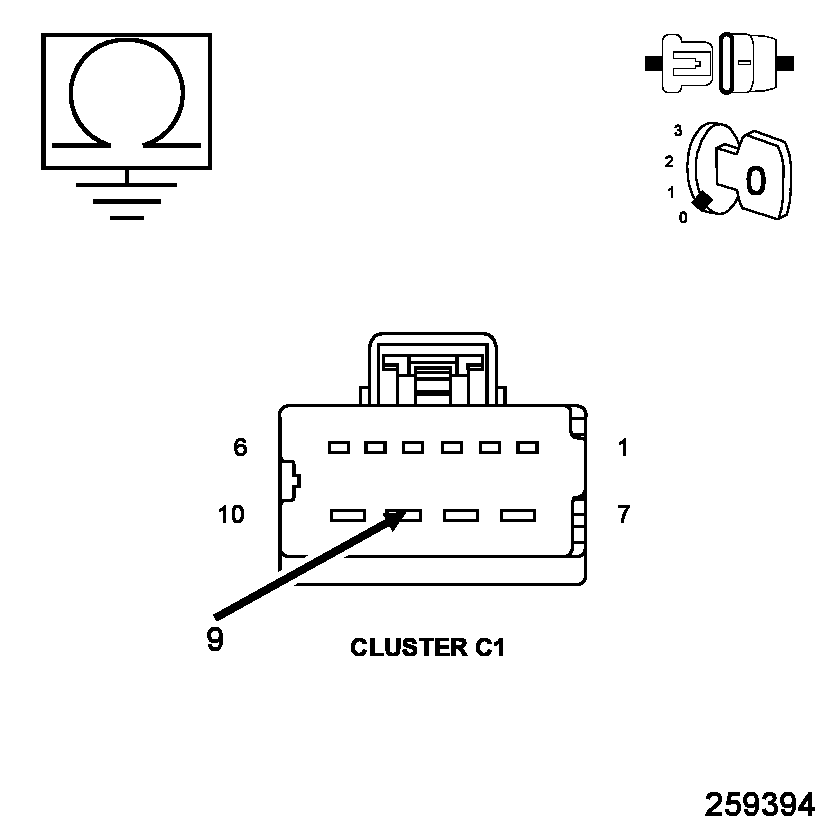

Fig 1: Checking Door Lock Driver Wire For Short To Ground

Courtesy of CHRYSLER GROUP, LLC

1. Turn the ignition off.
2. Disconnect the Instrument Cluster C1 connector.
3. Measure the resistance between ground and the (P33) Door Lock Driver circuit.

   Is the resistance below 5.0 ohms?

   No

   • Replace the Instrument Cluster in accordance with Service Information.
   • Perform the BODY VERIFICATION TEST. Refer to STANDARD PROCEDURE .

   Yes

   • Repair the (P33) Door Lock Driver wire for a short to ground.
   • Perform the BODY VERIFICATION TEST. Refer to STANDARD PROCEDURE .
