Incorrect Wheel Certification Label (23-042-16)

WARNING: This page is about the Compass High Altitude, 2.0L Eng VIN A, which is a different variant/trim than selected.

Publication date: 2016-09-14
Reference number: 23-042-16

INCORRECT WHEEL CERTIFICATION LABEL

TECHNICAL SERVICE BULLETIN

Reference Number(s): 23-042-16, Date of Issue: September 14, 2016

CHRYSLER:	2013 - 2016 Jeep Compass/Patriot (MK)
GROUP:	Body

NOTE: THIS SERVICE BULLETIN IS ALSO BEING RELEASED AS RAPID RESPONSE TRANSMITTAL (RRT) 16-087. ALL APPLICABLE UN-SOLD RRT VIN's HAVE BEEN LOADED. TO VERIFY THAT THIS RRT SERVICE ACTION IS APPLICABLE TO THE UN-SOLD VEHICLE, USE VIP OR PERFORM A VIN SEARCH IN TECHCONNECT.

SUBJECT

Incorrect Wheel Certification Label

OVERVIEW

This bulletin involves installing new wheel rim size overlay labels.

MODELS

MODELS CHART

2013 - 2016

(MK)

Jeep Compass/Patriot

NOTE: This bulletin applies to vehicles within the following markets/countries: NAFTA.

NOTE: This bulletin applies to vehicles built on or before July 02, 2016 (MDH 0702XX) equipped with 16 X 6.5 Aluminum Wheels (Sales Code WNF).

SYMPTOM/CONDITION

Incorrect wheel rim size printed on certification label.

DIAGNOSIS

If a customer's VIN is listed in VIP or your RRT VIN list, perform the repair.

PARTS REQUIRED

NOTE: Sticker labels are for un-sold vehicles only. If additional or replacement labels are needed, order Part No. 68356528AA.

PARTS DESCRIPTION CHART

Qty.	Part No.	Description
1	68356528AA	Certification Overlay Labels (16X7.0)

REPAIR PROCEDURE

Open the driver's side door.

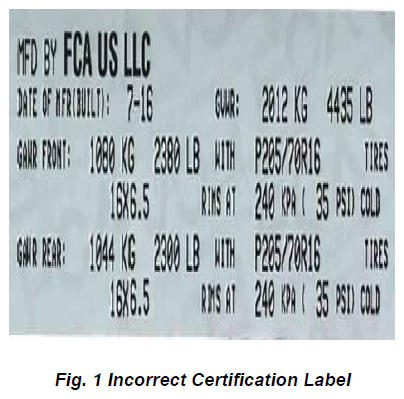

Locate the certification label on the door jamb surface (Fig. 1).

NOTE: Do not remove the old certification label. Both new labels are to be placed over the old label.
Clean the surface of the original certification label with isopropyl alcohol, glass cleaner or equivalent and a soft cloth.

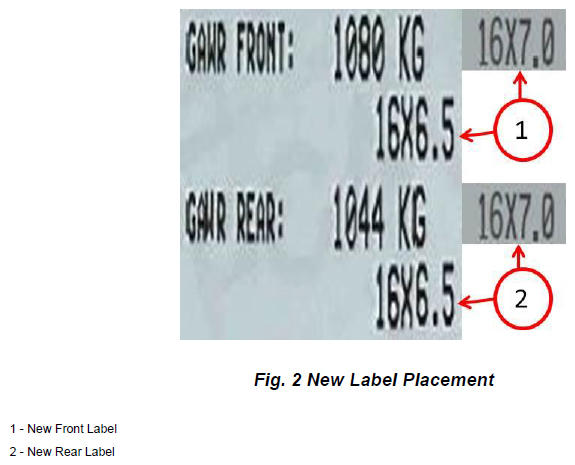

Apply one of the new 16X7.0 certification overlay labels directly over the original 16X6.5 front wheel rim size and the other label over the rear wheel rim size (Fig. 2).
Firmly press and smooth both overlay labels to ensure a good adhesion.

POLICY

Reimbursable within the provisions of the warranty.

TIME ALLOWANCE

TIME ALLOWANCE CHART

Labor Operation No:	Description	Skill Category	Amount
23-01-05-96	Label, Tire/Wheel size Certification (0 - Introduction)	6 - Electrical and Body Systems	0.0 Hrs.

TIME ALLOWANCE CHART

	Related
95-23-01-50	Handling Fee for Installing Tire/Wheel Certification Label (0 - Introduction)		$5.00

FAILURE CODE

FAILURE CODE CHART

ZZ	Service Action
