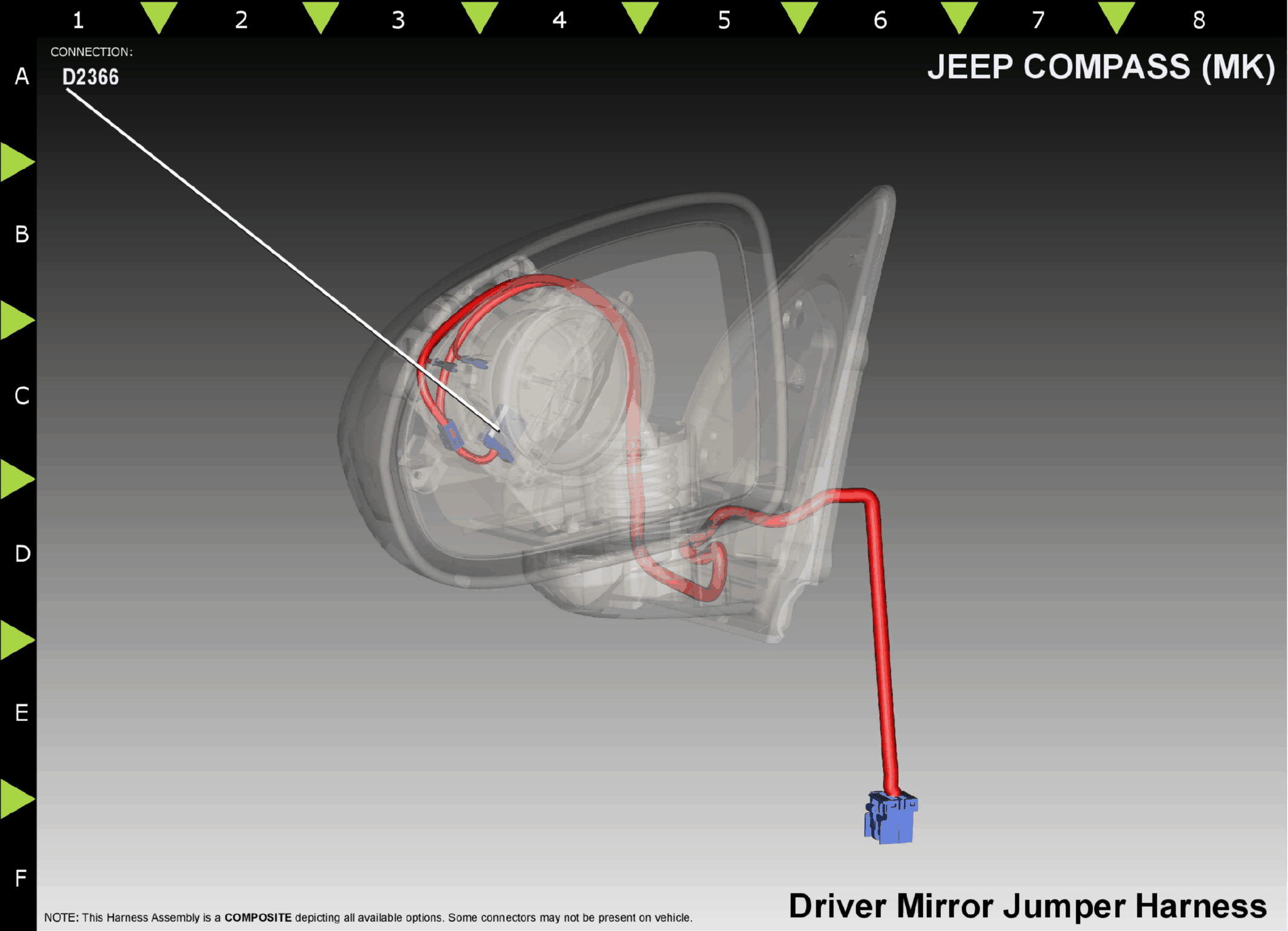

Motor-Mirror Adjust-Driver (D2366)
Harness-Family: Driver_Mirror_Jumper
Color: NATURAL
Gender: FEMALE
Part Number: 925015-0
Part Description: Not Available
Connector No: D2366
Option: Standard
Repair Kit Part Number: Not Available
Cavity Count: null
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option | ||
|---|---|---|---|---|---|---|---|
| 1 | P71 | RD | 0.35 | DRIVER MIRROR VERTICAL DRIVER | MK49 LHD/ MK74 LHD POWER FOLD | ||
| 1 | P72 | RD | 0.35 | PASSENGER MIRROR VERTICAL DRIVER | RHD | ||
| 1 | P75 | RD | 0.35 | DRIVER MIRROR HORIZONTAL DRIVER | MK74 LHD EXCEPT POWER FOLD | ||
| 2 | P76 | VT | 0.35 | MIRROR COMMON DRIVER | N/A | ||
| 3 | P71 | DB | 0.35 | DRIVER MIRROR VERTICAL DRIVER | MK74 LHD EXCEPT POWER FOLD | ||
| 3 | P74 | DB | 0.35 | PASSENGER MIRROR HORIZONTAL DRIVER | RHD | ||
| 3 | P75 | DB | 0.35 | DRIVER MIRROR HORIZONTAL DRIVER | MK49 LHD/ MK74 LHD POWER FOLD | ||
|
|||||||
