Relay-Daytime Running Lamps (D2671A)

Harness-Family: HDLP_Dash

Color: ~~

Gender: FEMALE

Part Number: R65126-001

Part Description: Not Available

Connector No: D2671A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

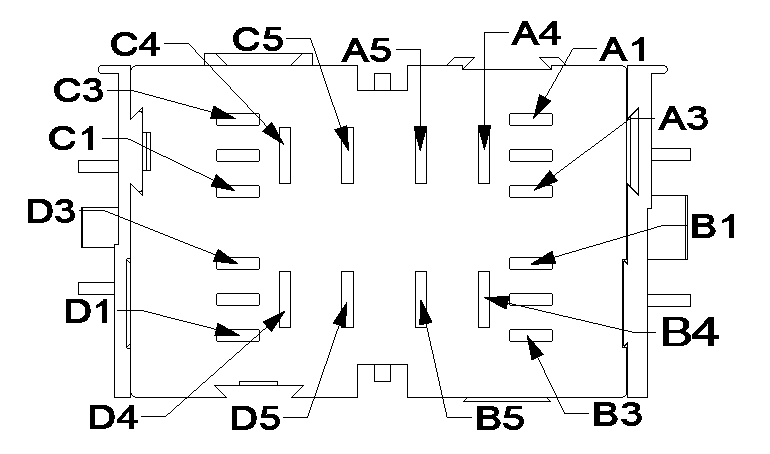

Fig 1: Relay-Daytime Running Lamps Connector End View
GCWD1085703Courtesy of CHRYSLER

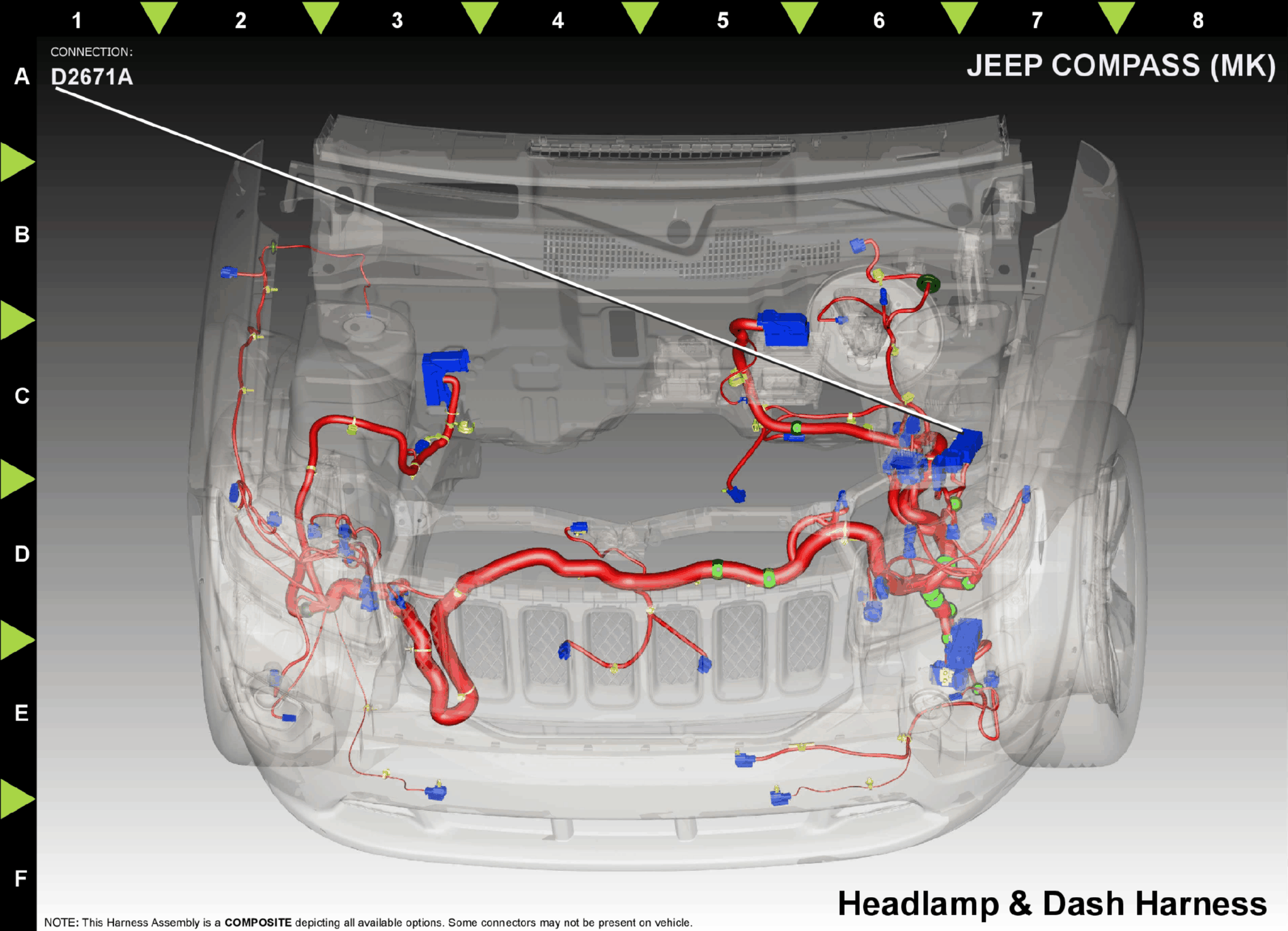

Fig 2: Relay-Daytime Running Lamps Component Location
GCWD1211875Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
A1 A935 RD 0.50 FUSED B(+) N/A
A3 L157 TN/BR 0.50 DAYTIME RUNNING LAMPS SIGNAL N/A
A4 L59 WT/DB 0.50 RIGHT DRL LAMP DRIVER N/A
A5 F936 PK/YL 0.50 FUSED IGNITION SWITCH OUTPUT (RUN) N/A
B1 A935 RD 0.50 FUSED B(+) N/A
B3 L57 WT/GY 0.50 DAY TIME RUNNING LAMPS SIG N/A
B4 L58 WT/YL 0.50 LEFT DRL LAMP DRIVER N/A
B5 F936 PK/YL 0.50 FUSED IGNITION SWITCH OUTPUT (RUN) N/A
C1 A935 RD 0.50 FUSED B(+) N/A
C3 L57 WT/GY 0.50 DAY TIME RUNNING LAMPS SIG N/A
C4 L58 WT/YL 0.50 LEFT DRL LAMP DRIVER N/A
C5 F936 PK/YL 0.50 FUSED IGNITION SWITCH OUTPUT (RUN) N/A
D1 A935 RD 0.50 FUSED B(+) N/A
D3 L157 TN/BR 0.50 DAYTIME RUNNING LAMPS SIGNAL N/A
D4 L59 WT/DB 0.50 RIGHT DRL LAMP DRIVER N/A
D5 F936 PK/YL 0.50 FUSED IGNITION SWITCH OUTPUT (RUN) N/A
(1) Pins not listed are not used for this connector
