Connector End Views & Electrical Component Locations (2 Of 3): S1

Harness-Family: Trailer_Tow

Color: NA

Gender: FEMALE

Part Number: NA

Part Description: Not Available

Connector No: S1

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count:

Fig 1: S1 Connector End View

GCWD1006457

Courtesy of CHRYSLER

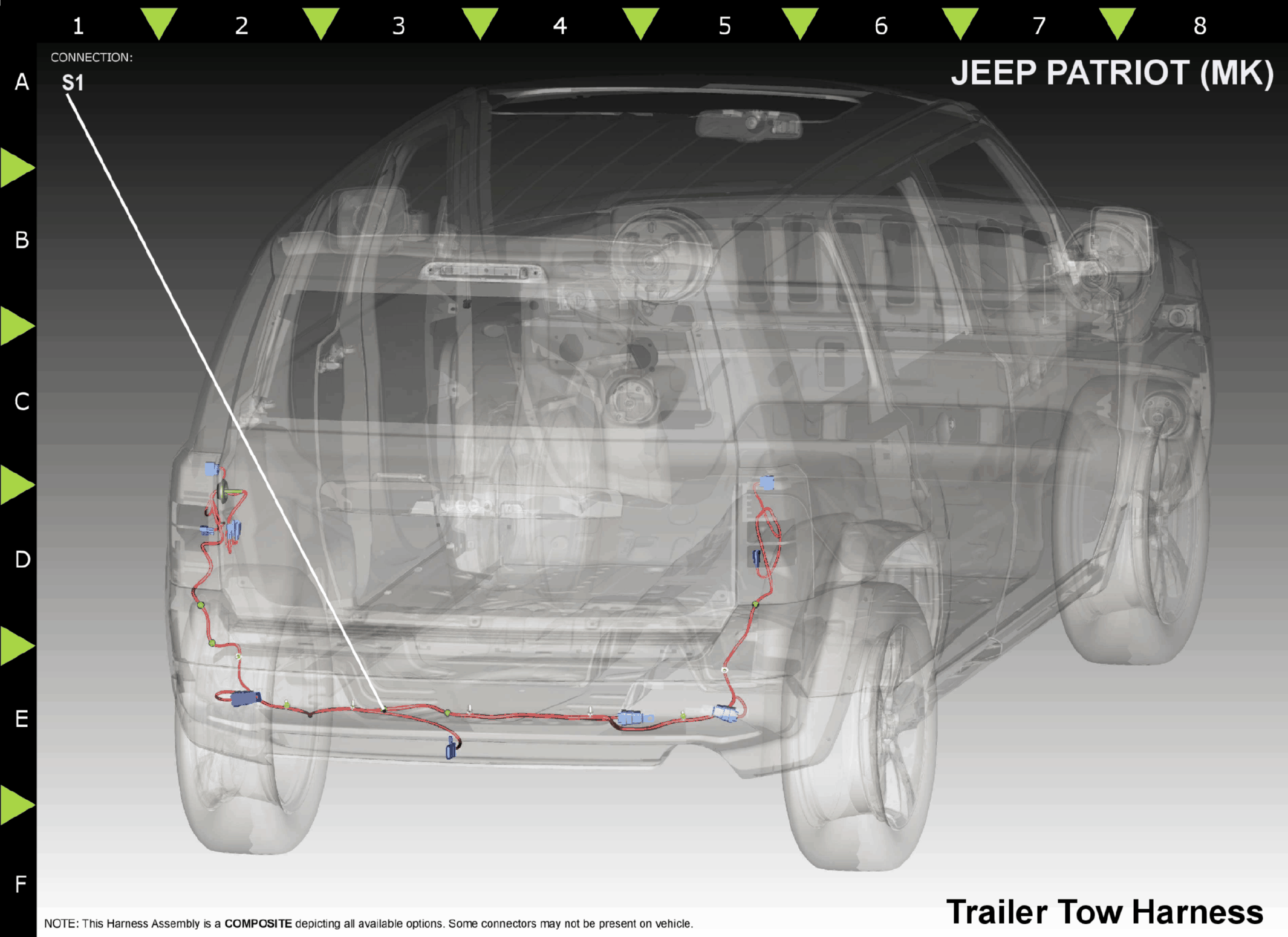

Fig 2: S1 Component Location

GCWD1211881

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

1

A100

RD/VT

16

FUSED B(+)

N/A

1

P187

BK

0.80

LEFT FRONT SEAT HEATER CONTROL

N/A

1

P188

BK

0.80

RIGHT FRONT SEAT HEATER CONTROL

N/A

2

A100

RD/VT

16

FUSED B(+)

N/A

2

P187

BK

0.80

LEFT FRONT SEAT HEATER CONTROL

N/A

2

P188

BK

0.80

RIGHT FRONT SEAT HEATER CONTROL

N/A

3

A100

RD/VT

16

FUSED B(+)

N/A

3

P187

BK

0.80

LEFT FRONT SEAT HEATER CONTROL

N/A

3

P188

BK

0.80

RIGHT FRONT SEAT HEATER CONTROL

N/A

4

A100

RD/VT

16

FUSED B(+)

N/A

⁽¹⁾	Pins not listed are not used for this connector
