Connector End Views & Electrical Component Locations (2 Of 3): SL217

Harness-Family: Body

Color: NA

Gender: FEMALE

Part Number: AGV36375

Part Description: Not Available

Connector No: SL217

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: ~~

Fig 1: Sl217 Connector End View

Courtesy of CHRYSLER

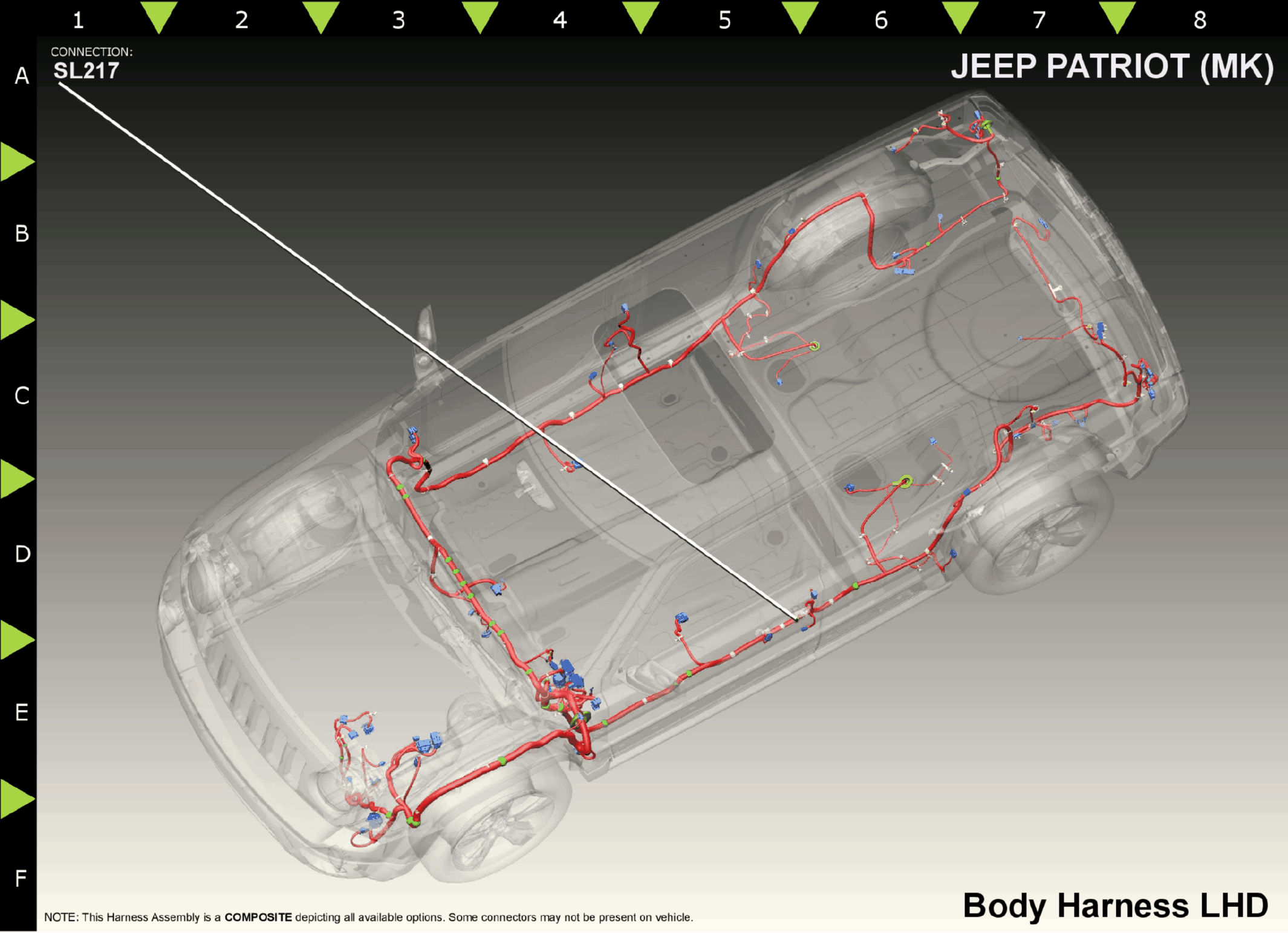

Fig 2: Sl217 Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

L217

WT/VT

0.50

PARK LAMP FEED

N/A

⁽¹⁾	Pins not listed are not used for this connector
