Solenoid-Electronically Controlled Clutch (D62A)

Harness-Family: Diff_Vent_Jumper

Color: NA

Gender: FEMALE

Part Number: PB535-02127

Part Description: CONNECTOR DEW02F-GY ASSEMBLY

Connector No: D62A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 2

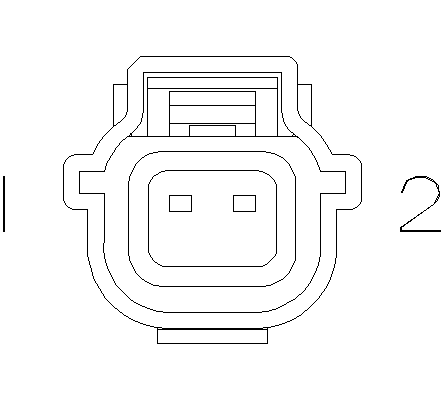

Fig 1: Solenoid-Electronically Controlled Clutch Connector End View

Courtesy of CHRYSLER

Fig 2: Solenoid-Electronically Controlled Clutch Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

T312

YL/VT

0.50

REAR DIFFERENTIAL SOLENOID CONTROL

N/A

T78

0.50

SOLENOID SUPPLY

N/A

⁽¹⁾	Pins not listed are not used for this connector
