Connector End Views & Electrical Component Locations (1 Of 3): G912A

Harness-Family: IP

Color: NA

Gender: FEMALE

Part Number: R206

Part Description: EYELET TERMINAL (TIN)

Connector No: G912A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 1

Fig 1: G912a Connector End View

Courtesy of CHRYSLER

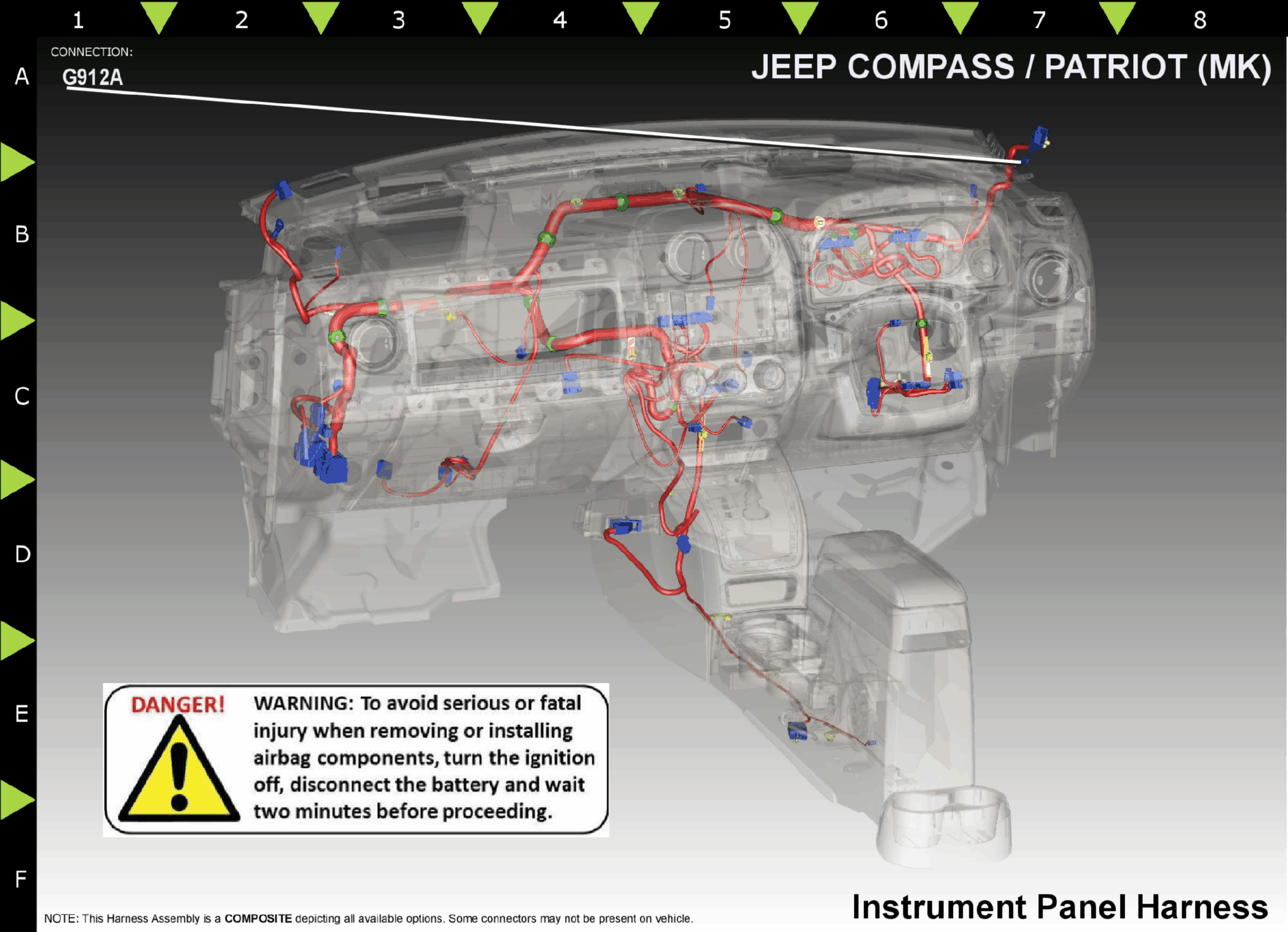

Fig 2: G912a Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

Z912

0.50

GROUND

N/A

⁽¹⁾	Pins not listed are not used for this connector
