Connector End Views & Electrical Component Locations (1 Of 3): G913A

Harness-Family: Body

Color: NA

Gender: FEMALE

Part Number: 7009-1323-02

Part Description: LA TERMINAL - TIN PLATED

Connector No: G913A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 1

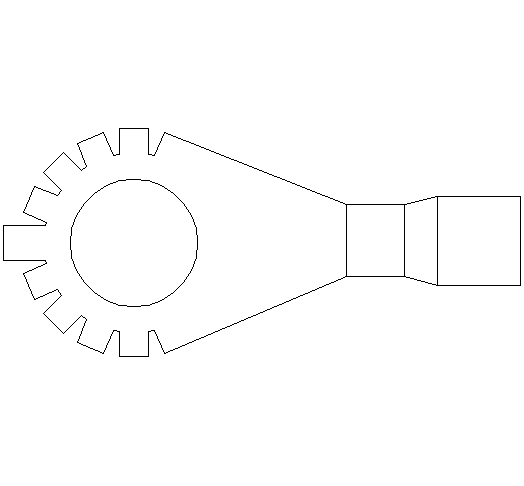

Fig 1: G913a Connector End View

Courtesy of CHRYSLER

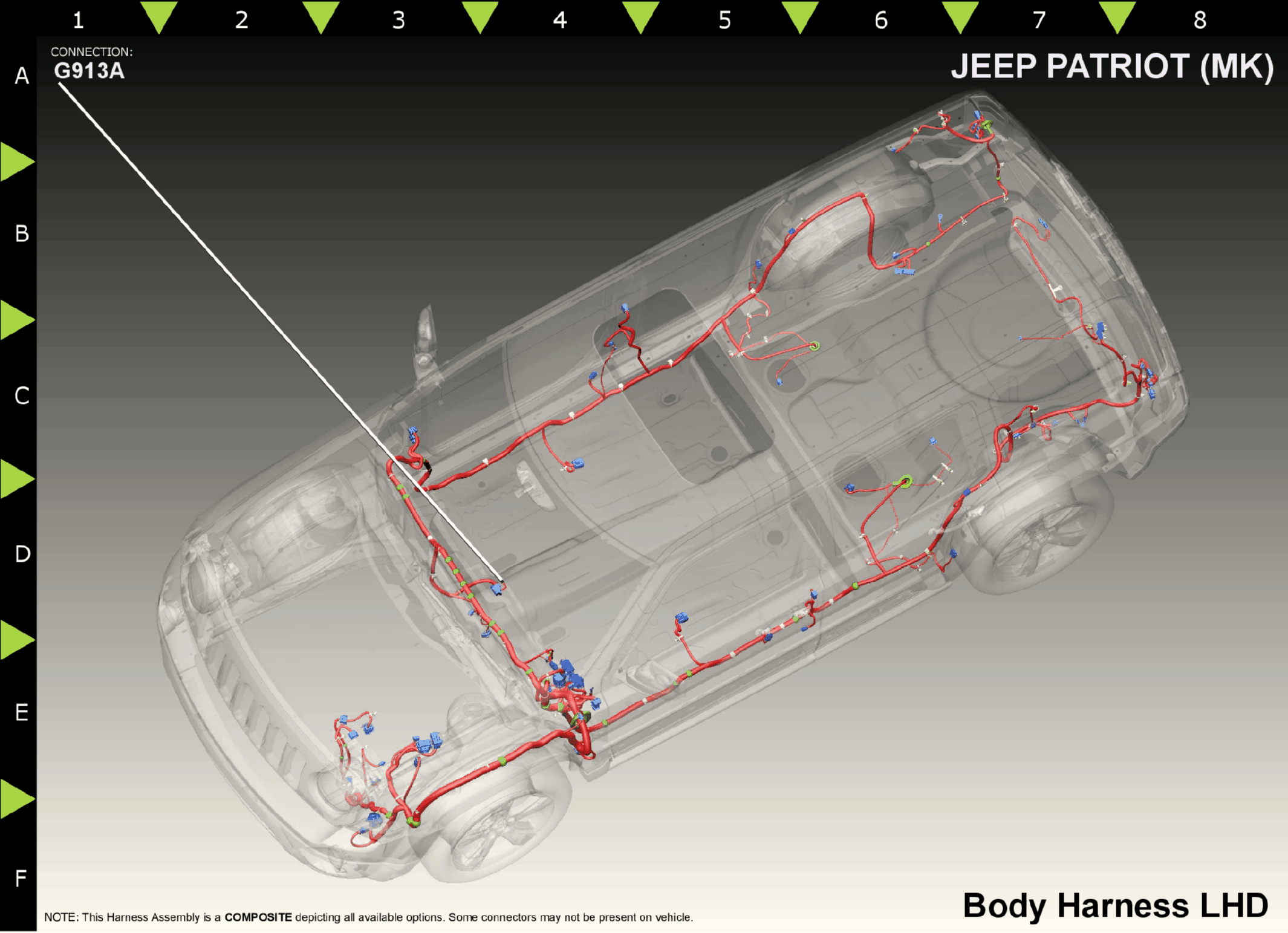

Fig 2: G913a Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

Z913

BK/LG

0.80

GROUND

N/A

⁽¹⁾	Pins not listed are not used for this connector
