Generator C2 (D3000B)

Harness-Family: Powertrain

Color: BLACK

Gender: FEMALE

Part Number: 7289-0163-30

Part Description: Not Available

Connector No: D3000B

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

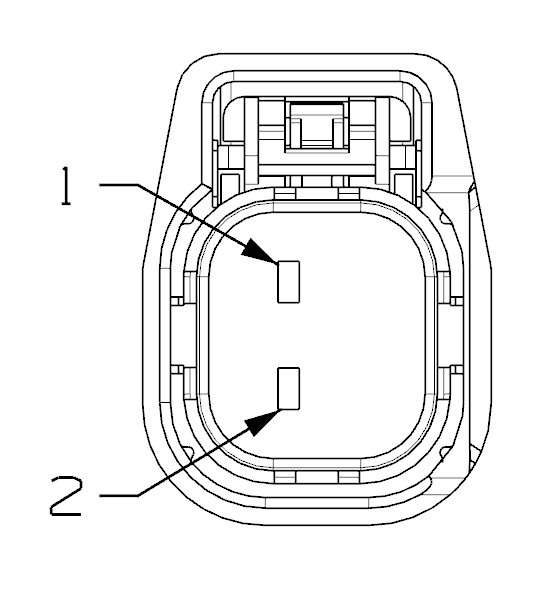

Fig 1: Generator C2 Connector End View

GCWD1011043

Courtesy of CHRYSLER

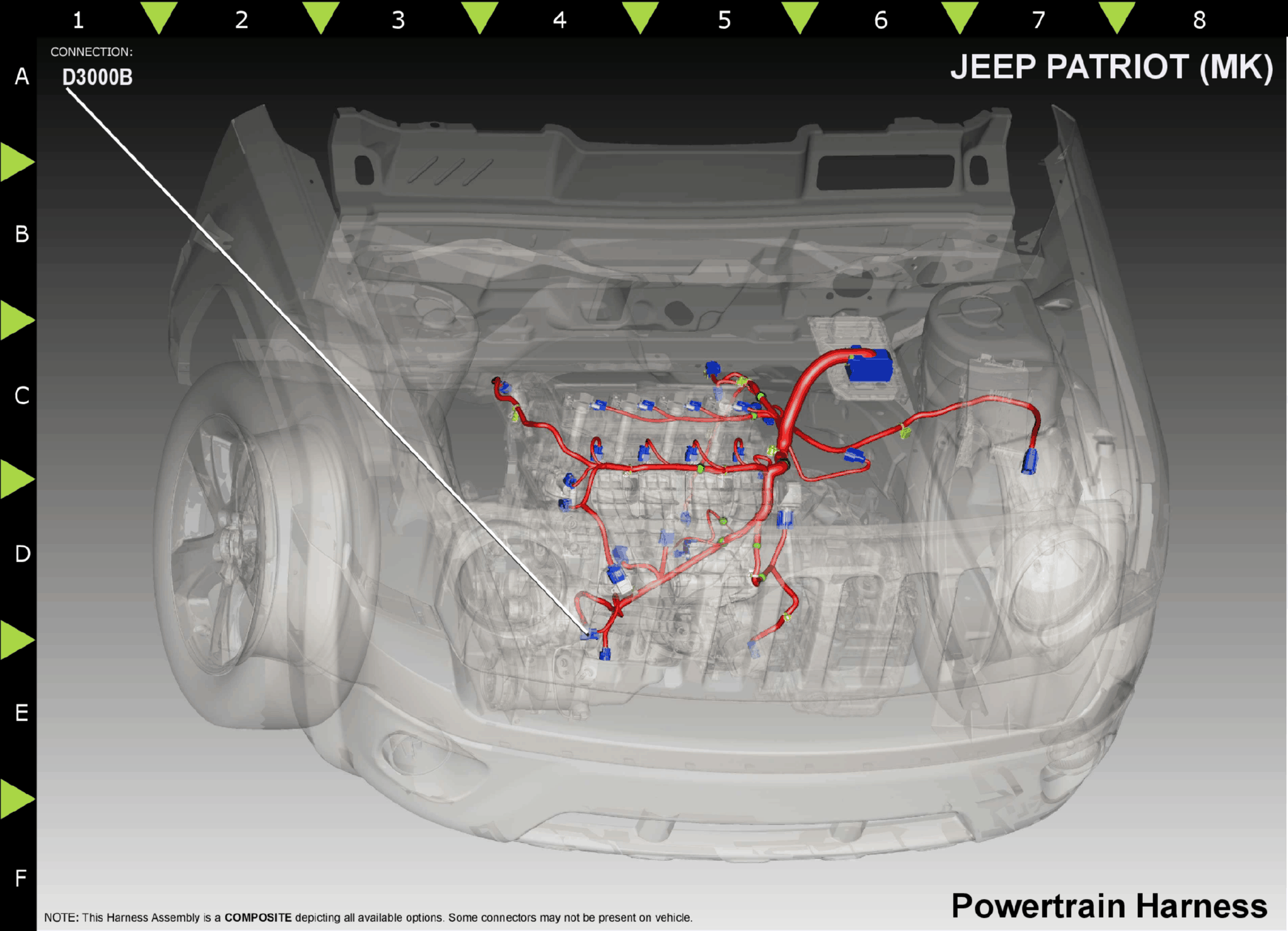

Fig 2: Generator C2 Component Location

GCWD1211901

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

1

K20

BR/GY

0.50

GEN FIELD CONTROL

N/A

2

A804

RD/VT

0.50

GEN SENSE

N/A

⁽¹⁾	Pins not listed are not used for this connector
