Door Speakers

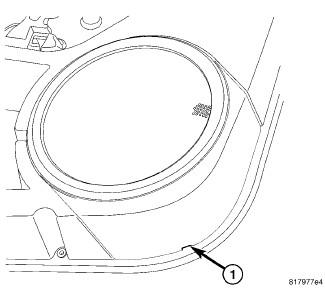

Fig 1: Service Notch
GC0083986Courtesy of CHRYSLER GROUP, LLC
  1. Using an approved flat blade tool find the service notch located at the bottom of speaker grille and pry up speaker grille.
    Fig 2: Door Panel & Speaker
    GC0083987Courtesy of CHRYSLER GROUP, LLC
  2. Remove the four screws attaching the speaker (2) to door panel (3).
  3. Disconnect the electrical connector and remove the speaker.
