Heater-Seat Cushion-Left (D6737A)

Harness-Family: Seat_Left_2

Color: GREEN

Gender: MALE

Part Number: 7282-5680-60

Part Description: 2P 1.5MM YESC UNSEALED MALE SUB-ASSEMBLY

Connector No: D6737A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 2

Fig 1: Heater-Seat Cushion-Left Connector End View

Courtesy of CHRYSLER

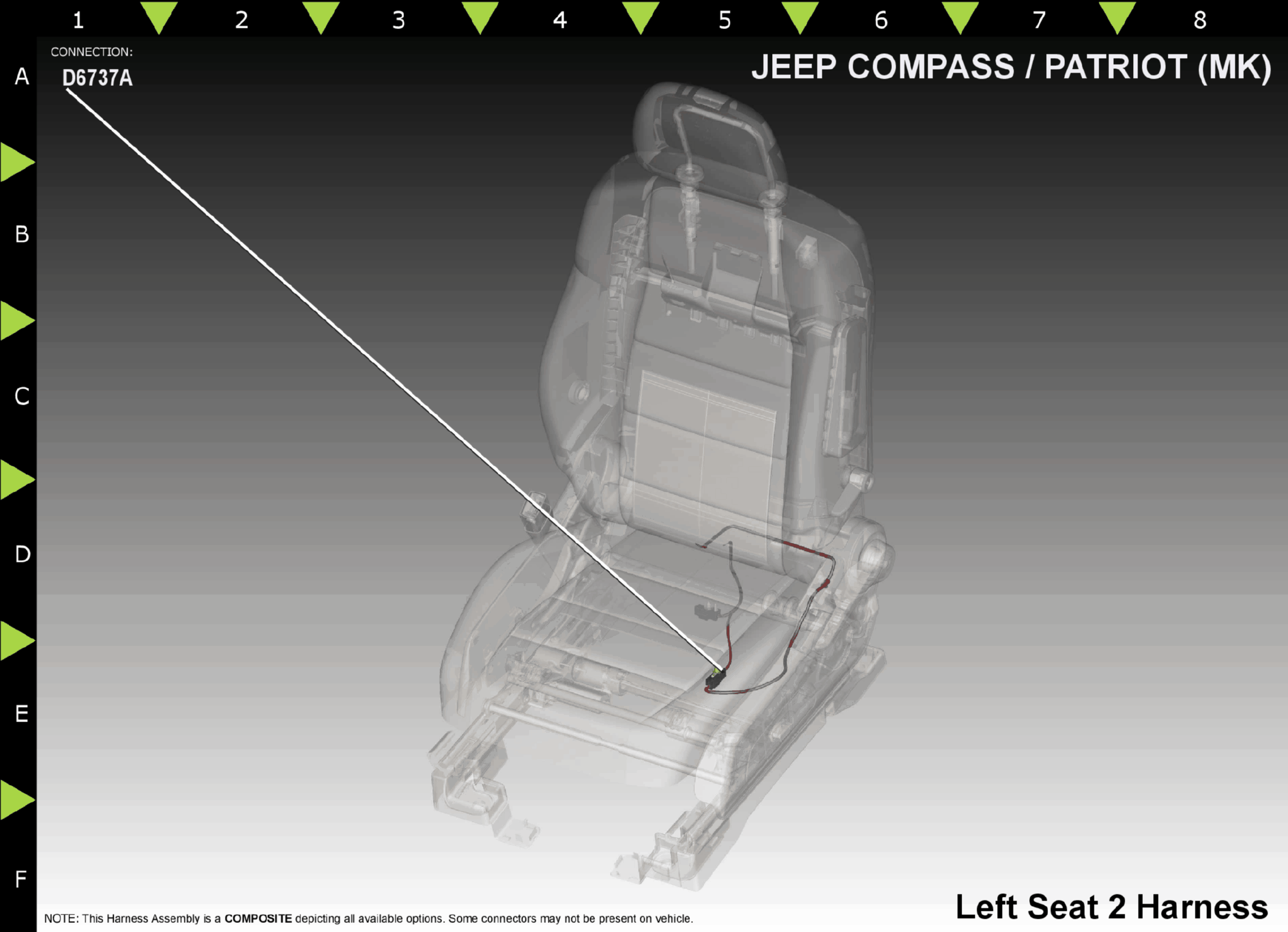

Fig 2: Heater-Seat Cushion-Left Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

P187

0.80

LEFT FRONT SEAT HEATER CONTROL

N/A

Z960

0.80

GROUND

N/A

⁽¹⁾	Pins not listed are not used for this connector
