Door - Front: Door: Adjustments: Adjustments: Up/Down

Fig 1: Front Door Striker

Courtesy of CHRYSLER GROUP, LLC

NOTE:

Up/down door adjustment is done by loosening either the hinge to the hinge pillar fasteners or the hinge to door fasteners and moving the door to the correct position.

Support the door with a suitable lifting device.
Loosen the latch striker bolts (2). Refer to STRIKER, DOOR LATCH, REMOVAL .

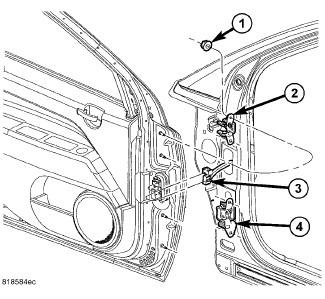

Fig 2: Hinges
Courtesy of CHRYSLER GROUP, LLC
If necessary, loosen the hinge to hinge pillar fasteners (2) and (4). Refer to HINGE, DOOR, REMOVAL .

Fig 3: Hinges, Four Nuts & Electrical Connectors
Courtesy of CHRYSLER GROUP, LLC
If necessary, Loosen the hinge to door fasteners (1). Refer to DOOR, REMOVAL .
Adjust the door to the correct position. Refer to GAP AND FLUSH, SPECIFICATIONS .
Tighten the door to hinges fasteners to 13 N.m (9.5 ft. lbs.).

Fig 4: Hinges
Courtesy of CHRYSLER GROUP, LLC
Tighten the upper most hinge bolt (1) to hinge pillar to 22 N.m (16 ft. lbs.).
Tighten the lower most hinge bolt (4) to hinge pillar to 22 N.m (16 ft. lbs.).
Tighten the remaining hinge to hinge pillar bolts to 22 N.m (16 ft. lbs.).

Fig 5: Front Door Striker
Courtesy of CHRYSLER GROUP, LLC
Tighten the latch striker bolts (2) 26 N.m (19 ft. lbs.). Refer to STRIKER, DOOR LATCH, INSTALLATION .
