Glass, Door: Removal: Removal

Fig 1: Module, Four Trim Hooks & Screw

Courtesy of CHRYSLER GROUP, LLC

Remove the door trim module (1). Refer to PLATE, CARRIER, REMOVAL .

Fig 2: Rear Door Inner Belt Molding
Courtesy of CHRYSLER GROUP, LLC
Remove the two screws and remove the foam block.
Remove the inner belt weatherstrip (1) from the door using the Remover, Outer Door Belt Molding (special tool #9093, Remover, Belt Moldings) special tool, if necessary.

Fig 3: Glass Run
Courtesy of CHRYSLER GROUP, LLC
Remove the rear door glass foam blocker and slide the glass down and out of the glass track (2).
Remove the screws (1) and remove the glass run assembly (2) from the door.

Fig 4: Rear Door Outer Weatherstrip
Courtesy of CHRYSLER GROUP, LLC
Remove the screws (2) and using the Remover, Outer Door Belt Molding (special tool #9093, Remover, Belt Moldings) special tool, if necessary, remove the outer belt weatherstrip (1).

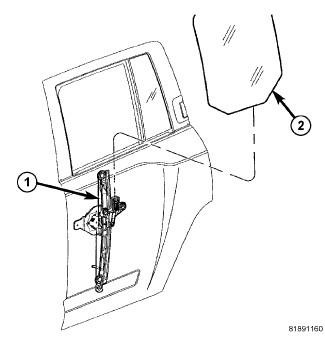

Fig 5: Rear Door Glass & Regulator
Courtesy of CHRYSLER GROUP, LLC
Remove the glass (2) from the door.
