Cover, Cowl Panel: Installation: Installation

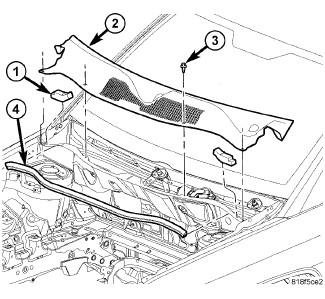

Fig 1: Cowl Top Panel
GC0084615Courtesy of CHRYSLER GROUP, LLC
  1. Position the end seals (1) into place.
  2. Install the panel (2) and install the screws (3).
  3. Install the hood seal (4).
  4. Install the wiper arms (2). Refer to ARM, WIPER, INSTALLATION .
