Fender, Front: Installation: Installation: Compass

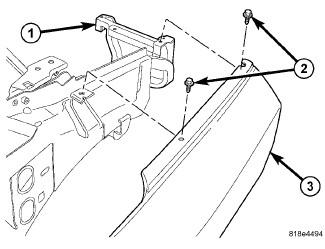

Fig 1: Fender & Upper Fender Bolts (Compass)

Courtesy of CHRYSLER GROUP, LLC

NOTE:

Tighten the fender fasteners only after all fasteners are installed loosely and the fender is adjusted for gap and flush. Refer to GAP AND FLUSH, SPECIFICATIONS .

Loosely install the two upper bolts (2).
