Shield, Splash, Rear Wheelhouse: Installation: Installation

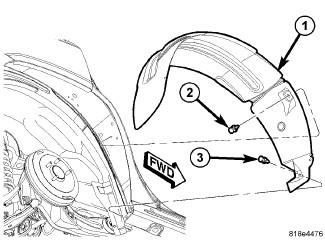

Fig 1: Splash Shield & Inner Push Pin Fasteners

Courtesy of CHRYSLER GROUP, LLC

1. Install the splash shield (1) and install the inner push pin fasteners.

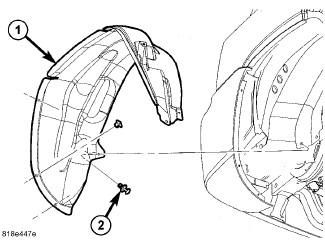

   Fig 2: Rear Push Pin Fasteners

   Courtesy of CHRYSLER GROUP, LLC
2. Install the rear fastener (2).
   Fig 3: Front Push Pin Fasteners

   Courtesy of CHRYSLER GROUP, LLC
3. Install the front push pin fasteners (2 - 3).
   Fig 4: Rear Fascia Splash Shield Fasteners

   Courtesy of CHRYSLER GROUP, LLC
4. Install the fasteners (1) along the outer edge of the splash shield.
