Lamp-Assembly Tail-Left C2 (D6641B)

Harness-Family: Body

Color: BLACK

Gender: FEMALE

Part Number: 7287-1596-30

Part Description: 2P 1.5 YESC RP SLD (FUEL INJECTOR)W/CPA

Connector No: D6641B

Option: Standard

Repair Kit Part Number: 68065018AA

Cavity Count: 2

Fig 1: Lamp-Assembly Tail-Left C2 Connector End View

Courtesy of CHRYSLER

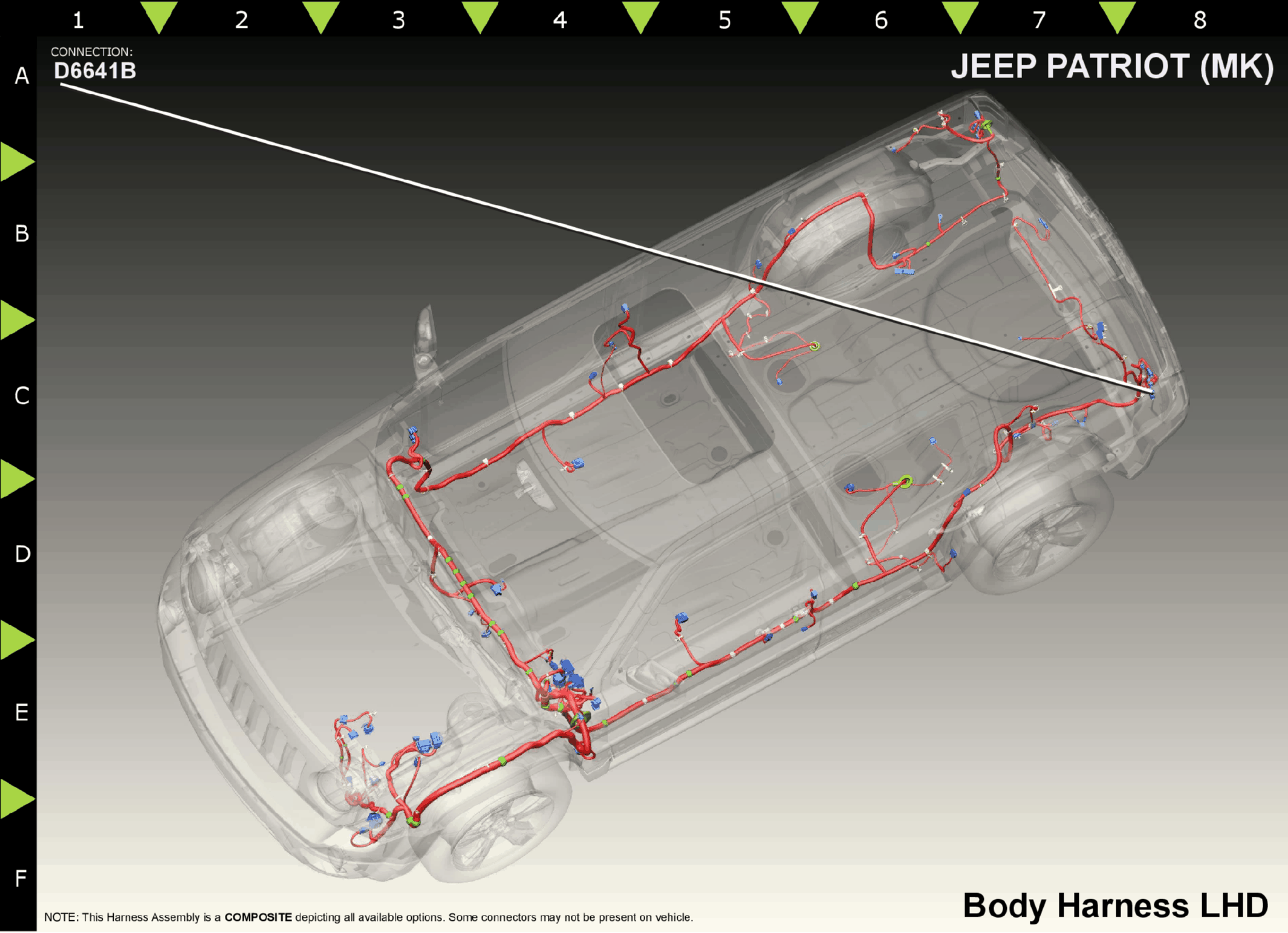

Fig 2: Lamp-Assembly Tail-Left C2 Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

Z960

BK/LB

0.80

GROUND

N/A

Z921

BK/LB

0.80

GROUND

N/A

WT/LG

0.50

BACKUP LAMP FEED

N/A

⁽¹⁾	Pins not listed are not used for this connector
