Body - Interior & Exterior: Interior: Headliner: Installation: Installation

Fig 1: Headliner

Courtesy of CHRYSLER GROUP, LLC

NOTE:

In the event the headliner is damaged or creased during removal, it will need to be replaced with a new headliner.

Position the headliner into the vehicle and connect the washer hose at the front (1).

Fig 2: Headliner, Push Pins & Dome Light
Courtesy of CHRYSLER GROUP, LLC
Tuck the headliner up over the remaining interior trim and connect the rear washer hose, if equipped.
Connect the dome light (1) electrical connector and position the headliner (4) up onto the rear header (2).
Install the push pin fasteners (3).

Fig 3: Headliner & Fasteners
Courtesy of CHRYSLER GROUP, LLC

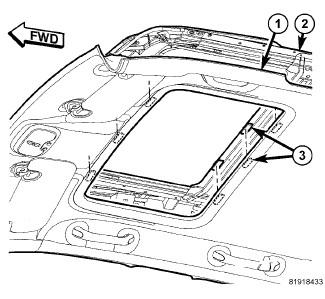

If equipped with a sunroof seat the trim ring fasteners (3) fully.

Fig 4: Support, Assist Handle & Visor
Courtesy of CHRYSLER GROUP, LLC

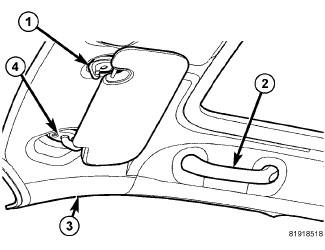

Install the assist handles (2) and seat the retaining clips fully.
Install the visors (4) and supports (1) and install the screws.

Fig 5: C-Pillar Trim
Courtesy of CHRYSLER GROUP, LLC
Install the C-pillar trim (1). Refer to PANEL, C-PILLAR TRIM, INSTALLATION .

Fig 6: Upper & Lower B-Pillar Trim
Courtesy of CHRYSLER GROUP, LLC
Install the upper B-pillar trim (1). Refer to PANEL, B-PILLAR TRIM, UPPER, INSTALLATION .

Fig 7: Headrest Release Tabs
Courtesy of CHRYSLER GROUP, LLC
Return the seats into the upright positions.
Press the headrest sleeve release buttons and install the headrest.

Fig 8: Rearview Mirror & Connectors
Courtesy of CHRYSLER GROUP, LLC
Connect the rear view mirror (3) electrical connectors (1 and 2).

Fig 9: A-Pillar Wire Harness
Courtesy of CHRYSLER GROUP, LLC
Position the wire harness onto the A-pillar (2) and seat the push pin retainers (1) fully.
Connect the electrical connector (3).

Fig 10: A-Pillar Trim
Courtesy of CHRYSLER GROUP, LLC
Position the bottom A-pillar tab into the top cover (1) and seat the retaining clips (2) fully.
