Panel, C-Pillar Trim: Installation: Installation: Patriot

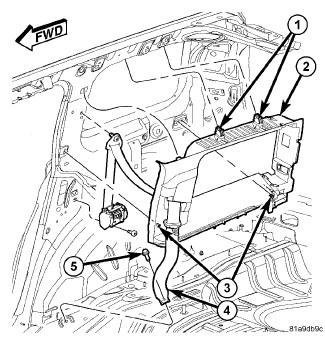

Fig 1: C-Pillar Trim & Retaining Clips

Courtesy of CHRYSLER GROUP, LLC

1. Pull the seat belt (4) through the hole in the trim.
2. Position the trim tabs (1) into the body and seat the trim retaining clips (3) fully.
3. Install and tighten the screw (5) that secures the lower anchor to the rear floor panel. Tighten the screw to 40 N.m (30 ft. lbs.).
