Prop, Gas: Removal: Removal

CAUTION:

Do not use any type of pliers on the machined surface of the gas prop to assist in supporting the hood or decklid. Use a proper device for support, or the help of an assistant.

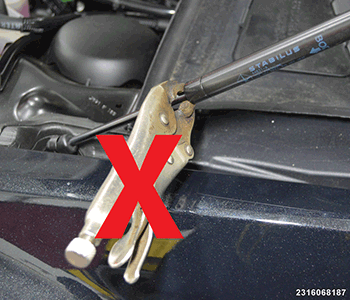

Fig 1: Incorrect Way To Prop Hood

Courtesy of CHRYSLER GROUP, LLC

Open the liftgate and support.

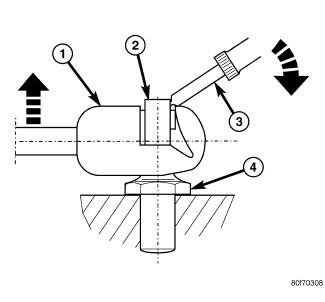

Fig 2: Support Cylinder Removal
Courtesy of CHRYSLER GROUP, LLC
Using a small flat bladed tool (3), or equivalent, release the retaining clips (2) while pulling the ball socket (1) away from the ball stud (4).

Fig 3: Support Cylinder Retaining Clip
Courtesy of CHRYSLER GROUP, LLC

NOTE:
Lift the clips (1) only enough to release the ball studs (3).
Remove the support cylinder from the upper and lower ball studs.
