Lamp-Assembly-Left Front C1 (MK49) (D6605A)

Harness-Family: HDLP_Dash

Color: BLACK

Gender: FEMALE

Part Number: 12059183

Part Description: INS ASSY

Connector No: D6605A

Option: MK49

Repair Kit Part Number: 05102410AA

Cavity Count: 2

Fig 1: Lamp-Assembly-Left Front C1 Connector End View (MK49)

Courtesy of CHRYSLER

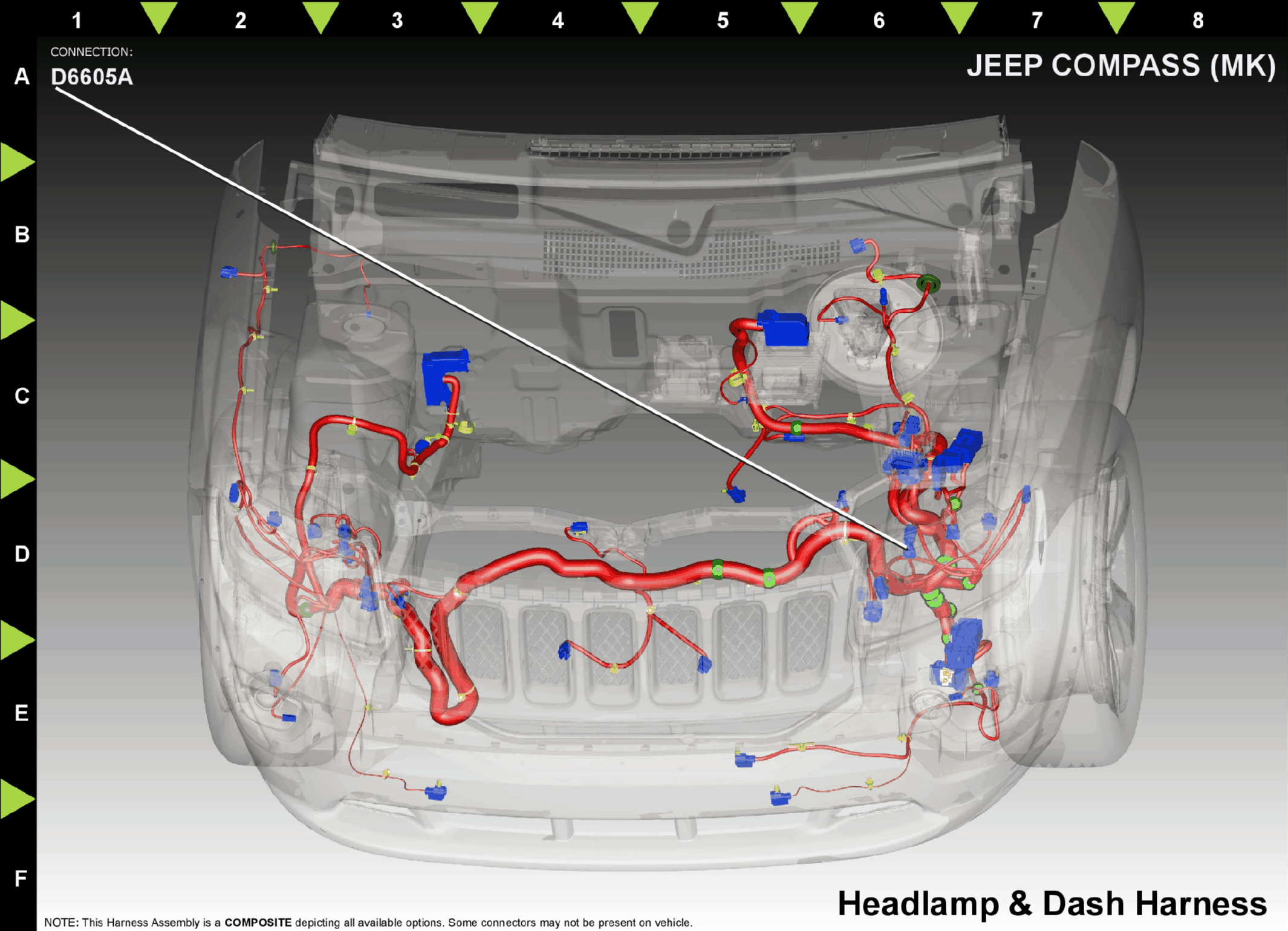

Fig 2: Lamp-Assembly-Left Front C1 Component Location (MK49)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

L33

WT/LG

0.50

LEFT HIGH BEAM DRIVER

N/A

Z906

0.50

GROUND

N/A

⁽¹⁾	Pins not listed are not used for this connector
