Sunshade, Sunroof: Removal: Removal

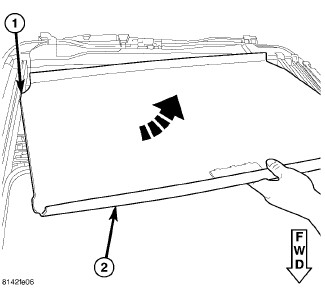

Fig 1: Pushing Up Front Center Of Sunshade

Courtesy of CHRYSLER GROUP, LLC

Remove the drain channel. Refer to TUBE, SUNROOF DRAIN, REMOVAL .
Push up the front center of the sunshade (1) to pop out the front two feet.

Fig 2: Removing Sunshade
Courtesy of CHRYSLER GROUP, LLC
Rotate the sunshade (2) so that the other feet (1) are removed from the guide track.
