Lamp-Assembly-Left Front C5 (D6605E)

Harness-Family: HDLP_Dash

Color: DARK GRAY

Gender: FEMALE

Part Number: 7287-2779-10

Part Description: Not Available

Connector No: D6605E

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Lamp-Assembly-Left Front C5 Connector End View

Courtesy of CHRYSLER

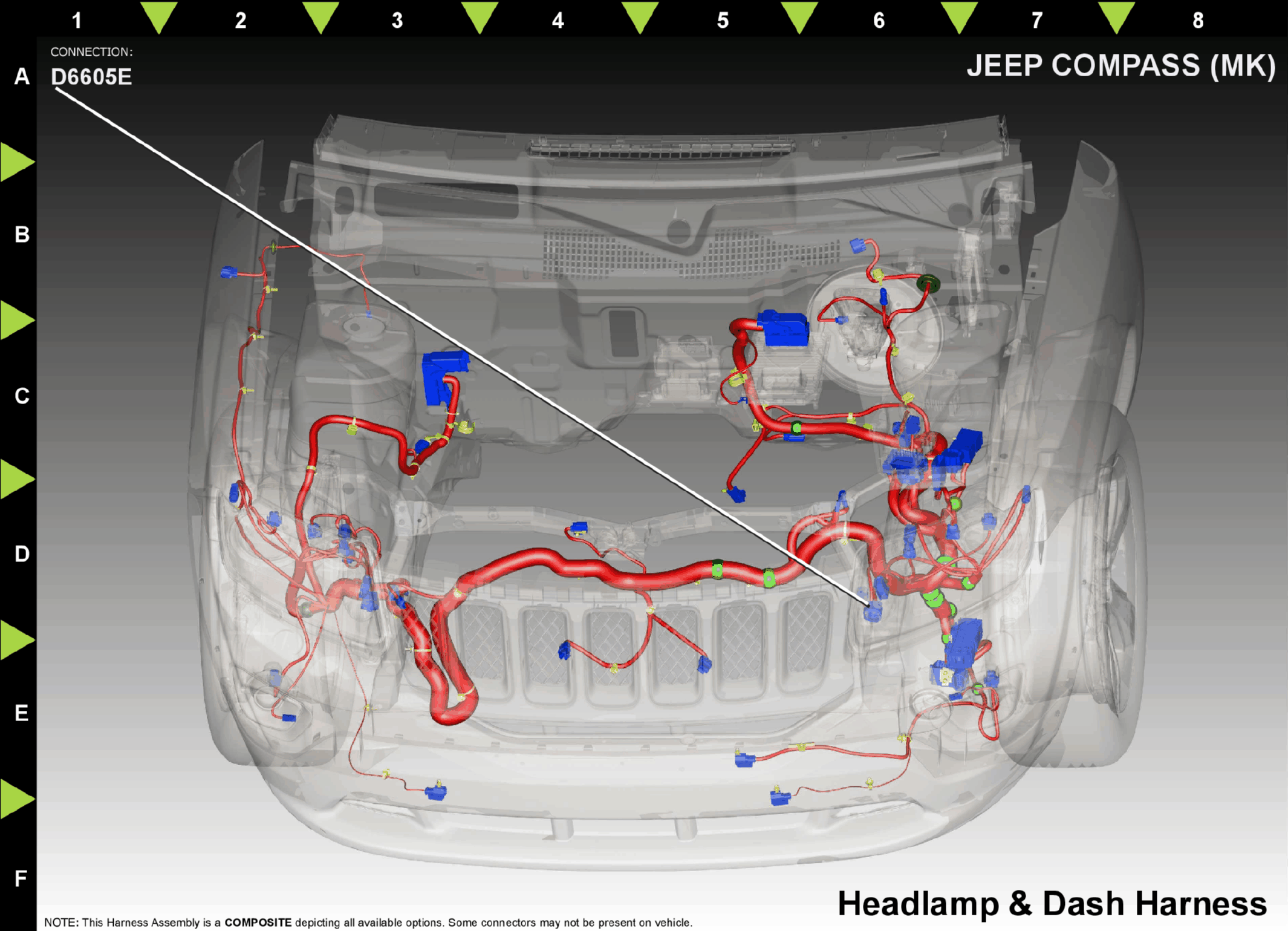

Fig 2: Lamp-Assembly-Left Front C5 Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

L43

WT/DB

0.50

LEFT LOW BEAM DRIVER

N/A

L33

WT/LG

0.50

LEFT HIGH BEAM DRIVER

N/A

Z906

0.50

GROUND

N/A

⁽¹⁾	Pins not listed are not used for this connector
