Lamp-Assembly-Right Front C6 (D6606F)

Harness-Family: HDLP_Dash

Color: BLACK

Gender: FEMALE

Part Number: 1-827578-1

Part Description: JUNIOR TIMER CONNECTOR

Connector No: D6606F

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 3

Fig 1: Lamp-Assembly-Right Front C6 Connector End View

Courtesy of CHRYSLER

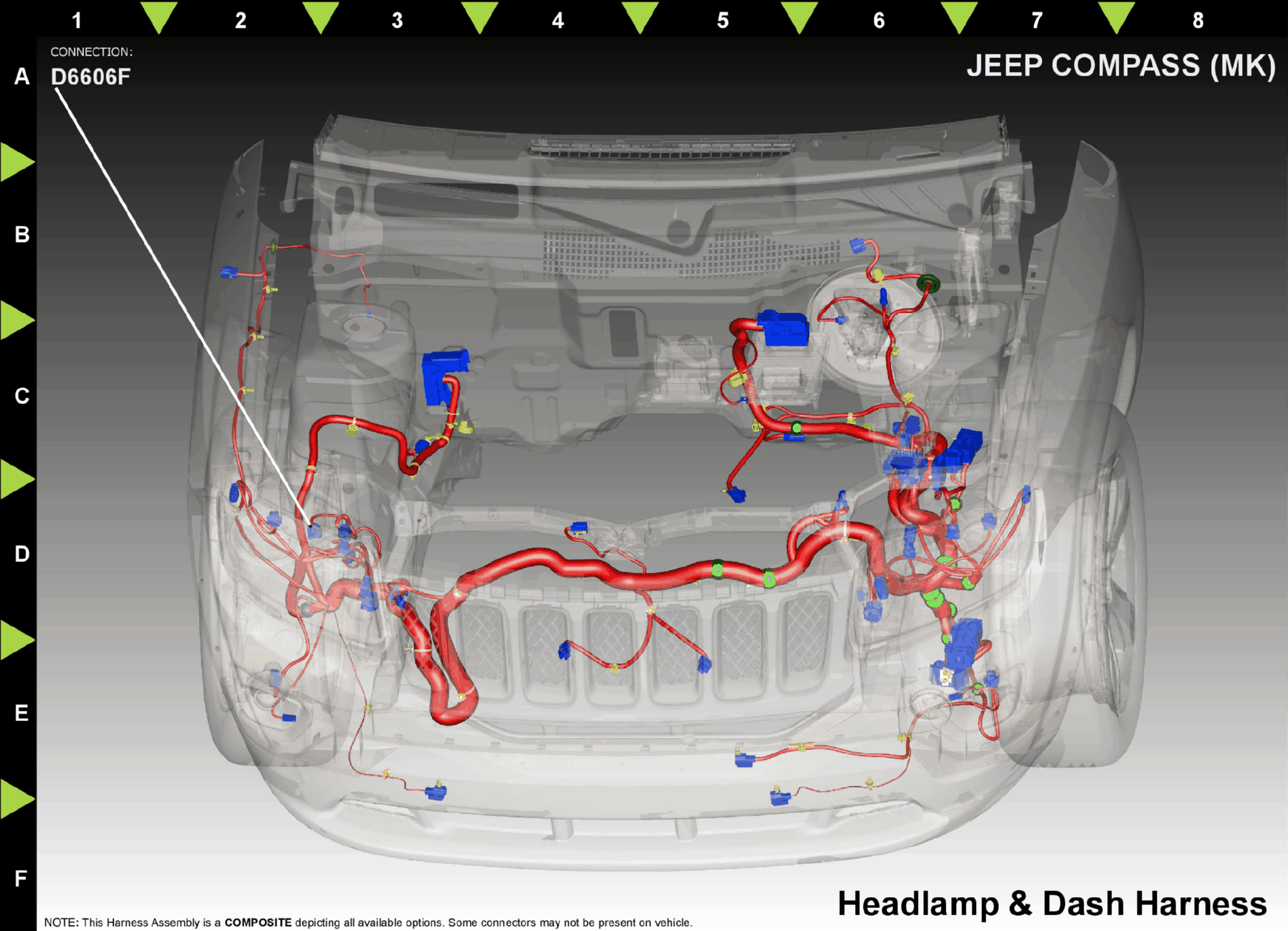

Fig 2: Lamp-Assembly-Right Front C6 Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

Z906

0.50

GROUND

N/A

L132

LG/WT

0.50

RIGHT HEADLAMP LEVEL SENSOR SIGNAL

N/A

L70

WT/GY

0.50

FUSED PARK LAMP FEED

N/A

⁽¹⁾	Pins not listed are not used for this connector
