Lamp-Assembly-Right Front C7 (D6606G)

Harness-Family: HDLP_Dash

Color: BLACK

Gender: FEMALE

Part Number: 7900-1486-000

Part Description: INSULATOR

Connector No: D6606G

Option: Standard

Repair Kit Part Number: 68030096AA

Cavity Count: 3

Fig 1: Lamp-Assembly-Right Front C7 Connector End View

Courtesy of CHRYSLER

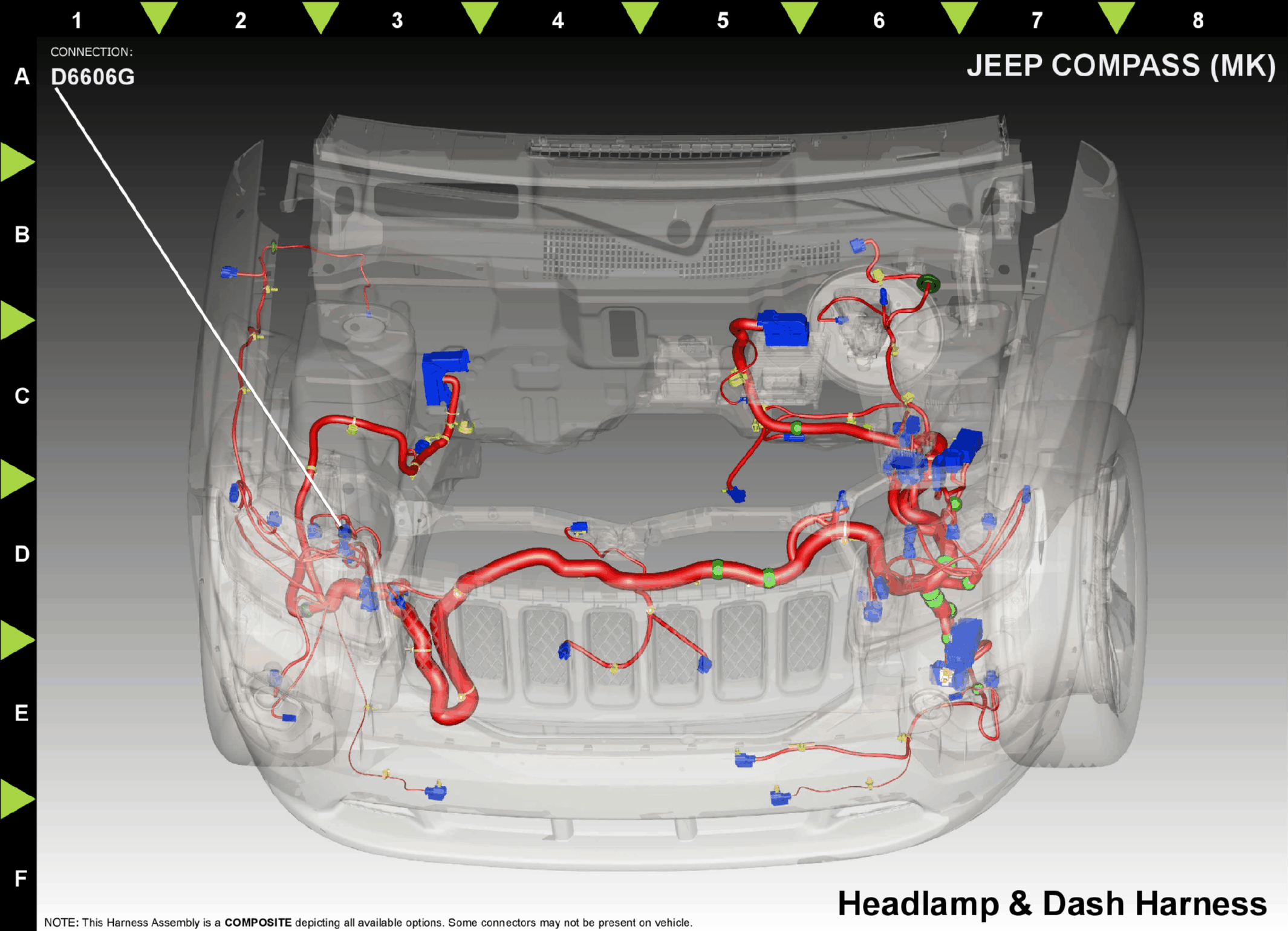

Fig 2: Lamp-Assembly-Right Front C7 Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

Z906

0.50

GROUND

N/A

L70

WT/GY

0.50

FUSED PARK LAMP FEED

N/A

L59

WT/DB

0.50

RIGHT DRL LAMP DRIVER

N/A

⁽¹⁾	Pins not listed are not used for this connector
