Lamp-Center High Mounted Stop (D4509A)

Harness-Family: Liftgate

Color: BLACK

Gender: FEMALE

Part Number: 7283-6498-30

Part Description: YESC SEALED Female SUB ASSEMBLY

Connector No: D4509A

Option: Standard

Repair Kit Part Number: 05161919AA

Cavity Count: 2

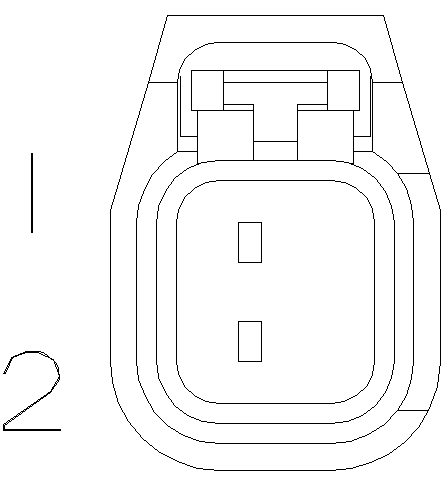

Fig 1: Lamp-Center High Mounted Stop Connector End View

Courtesy of CHRYSLER

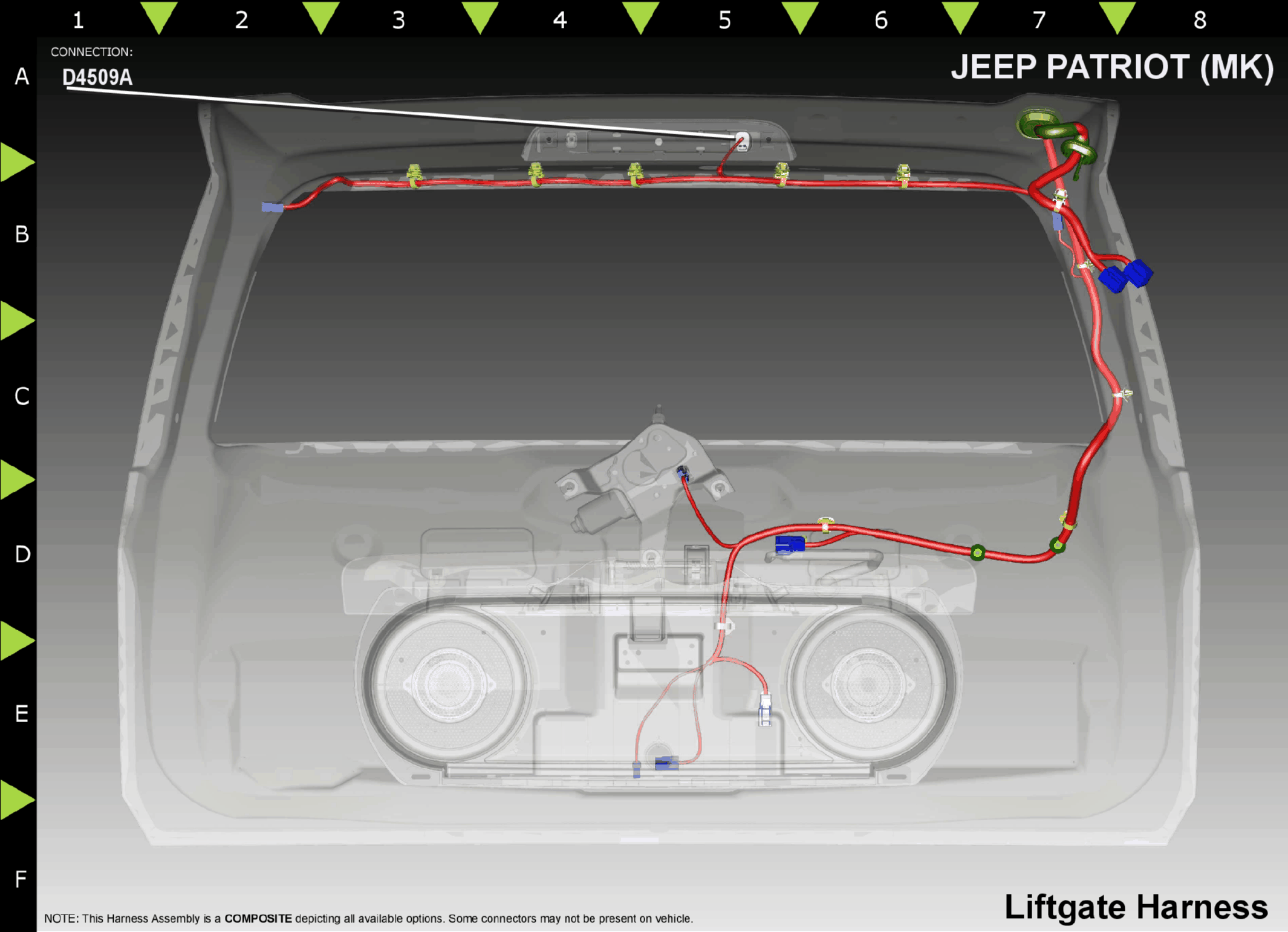

Fig 2: Lamp-Center High Mounted Stop Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

L53

DG/WT

0.50

BRAKE LAMP CONTROL OUTPUT 1

MK49

Z921

0.50

GROUND

MK74

Z921

0.50

GROUND

MK49

L53

DG/WH

0.50

BRAKE LAMP CONTROL OUTPUT 1

MK74

⁽¹⁾	Pins not listed are not used for this connector
