Lamp-Park/Turn-Left Front (Export) (D4555A)

Harness-Family: HDLP_Dash

Color: BLACK

Gender: FEMALE

Part Number: 7287-0954-30

Part Description: YESC RP TOP LOCK LIGHTING CONN W/ CPA

Connector No: D4555A

Option: EXPORT

Repair Kit Part Number: Not Available

Cavity Count: 3

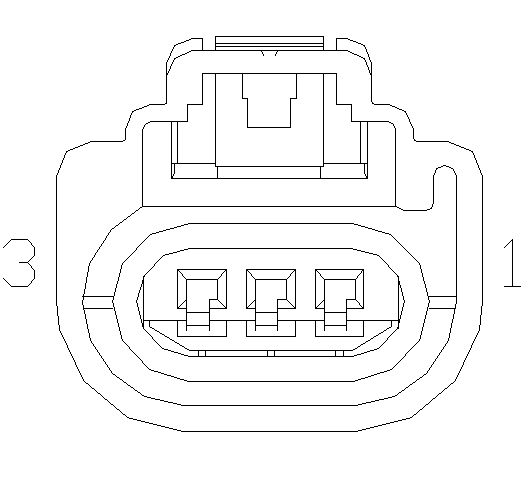

Fig 1: Lamp-Park/Turn-Left Front Connector End View (Export)

Courtesy of CHRYSLER

Fig 2: Lamp-Park/Turn-Left Front Component Location (Export)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

Z906

0.50

GROUND

N/A

L61

WT/LG

0.50

LEFT FRONT TURN LAMP DRIVER

N/A

⁽¹⁾	Pins not listed are not used for this connector
